Published: 18-Sep-2014

2007.0 Range Rover Sport (LS), 303-01D

Engine - TDV8 3.6L Diesel

Oil Cooler (G1816691)

REMOVAL AND INSTALLATION
Removal
  1. Disconnect the battery ground cable.
    Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  3. Refer to: Cooling System Partial Draining, Filling and Bleeding (303-03E Engine Cooling - TDV8 3.6L Diesel, General Procedures).
  4. Refer to: Intake Manifold Plenum Chamber (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).

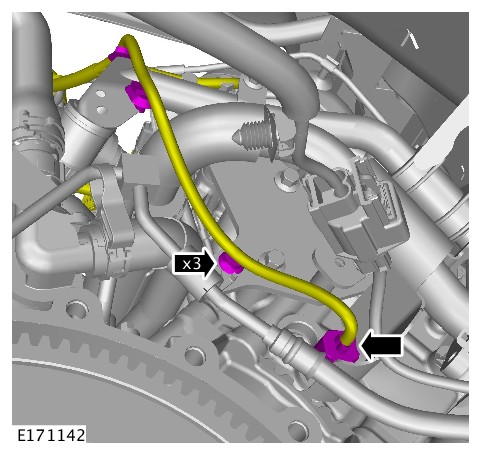

  5. E171142

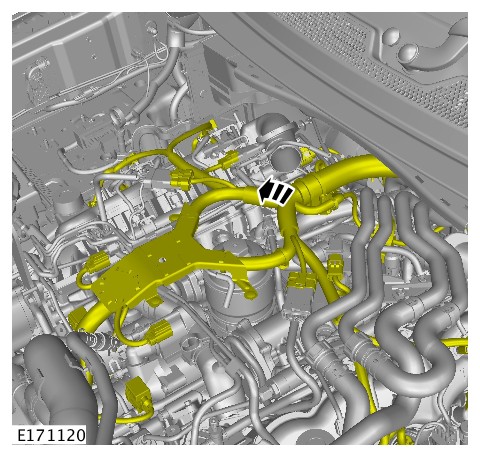

  6. E171120

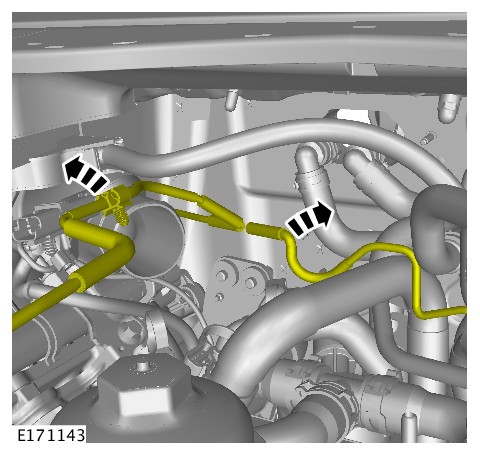

  7. E171143

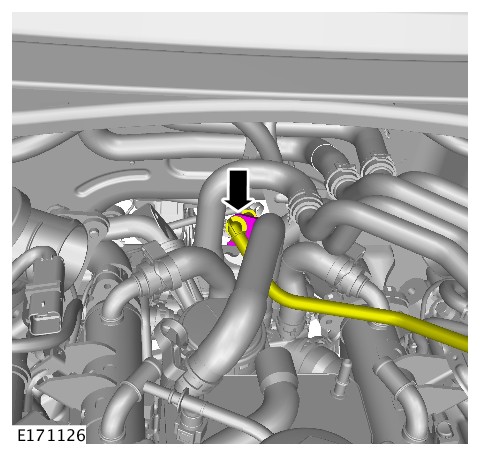

  8. E171126

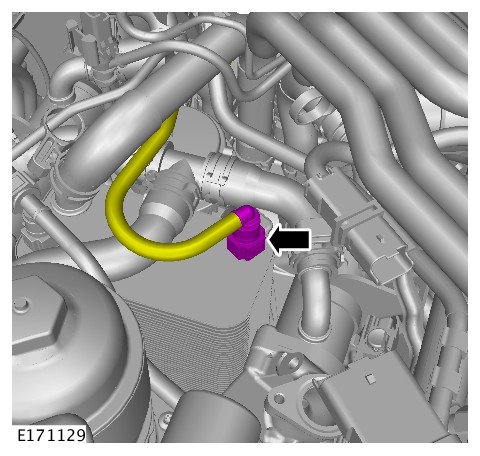

  9. E171129

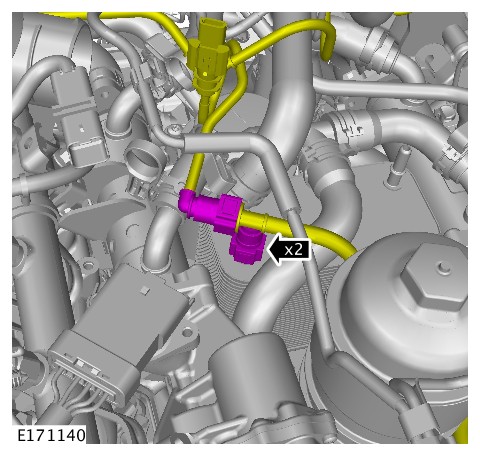

  10. E171140

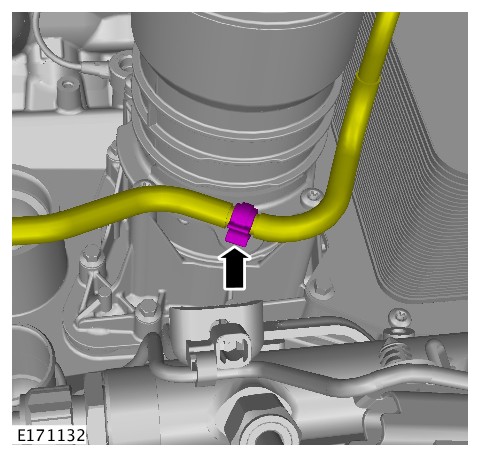

  11. E171132

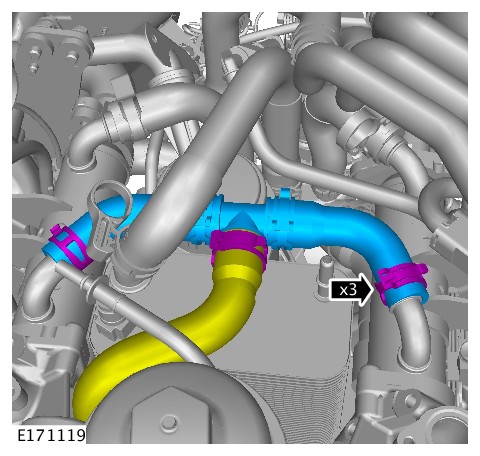

  12. E171119

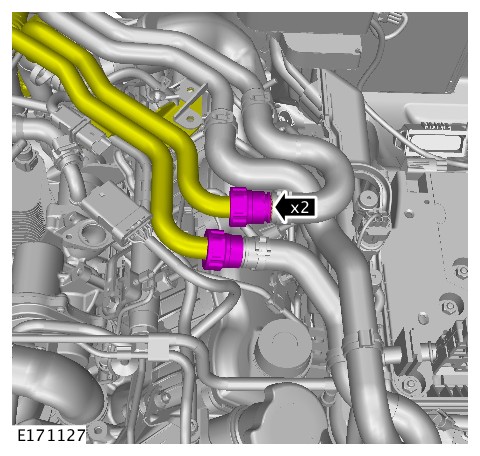

  13. E171127

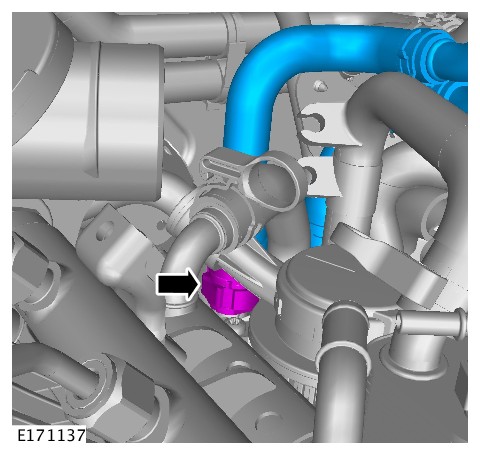

  14. E171137

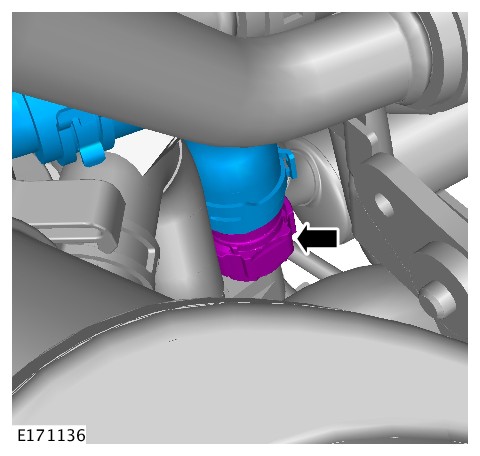

  15. E171136

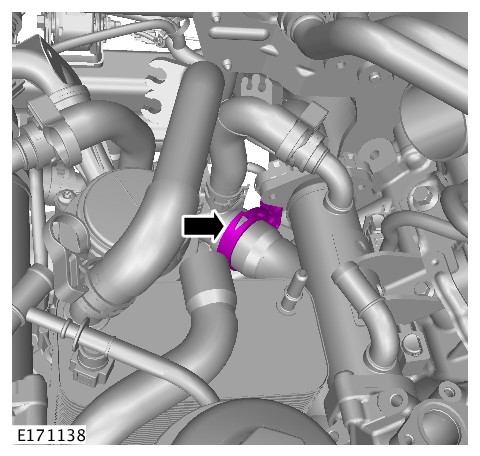

  16. E171138

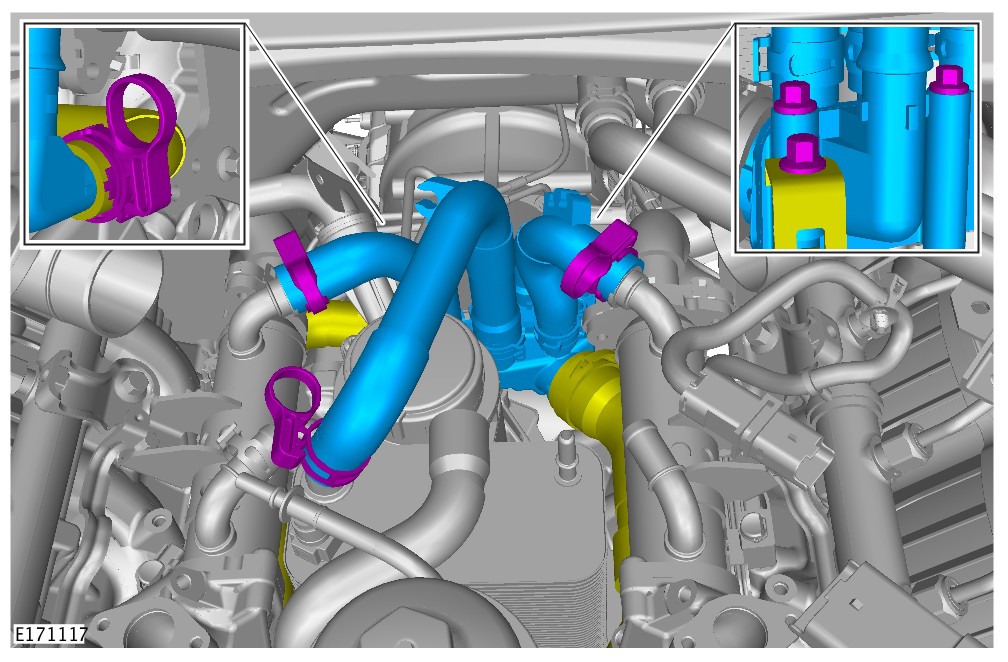

  17. E171117

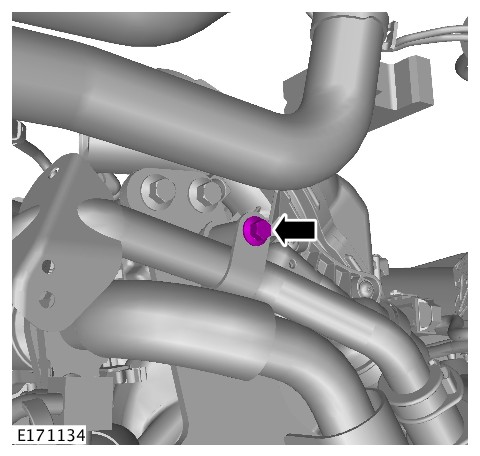

  18. E171134
    Torque: 10Nm

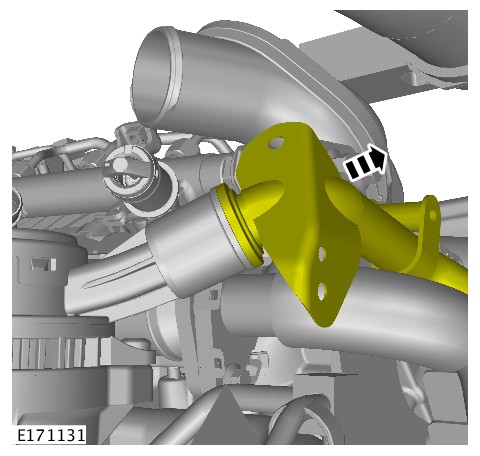

  19. E171131

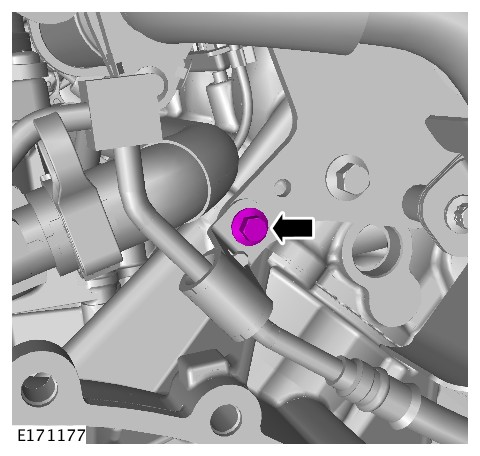

  20. E171177
    Torque: 10Nm

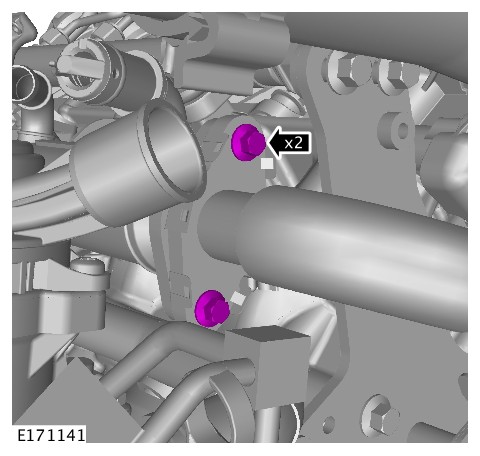

  21. E171141
    Torque: 10Nm

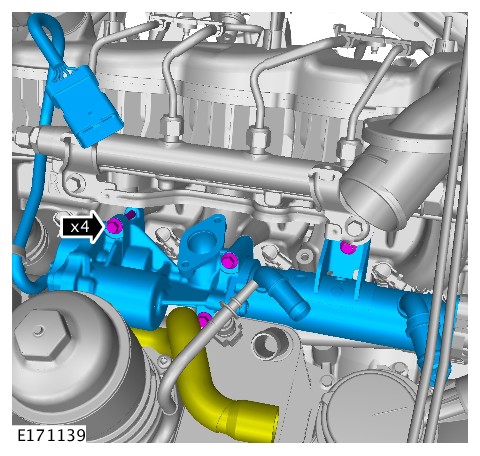

  22. E171139
    Torque: 10Nm

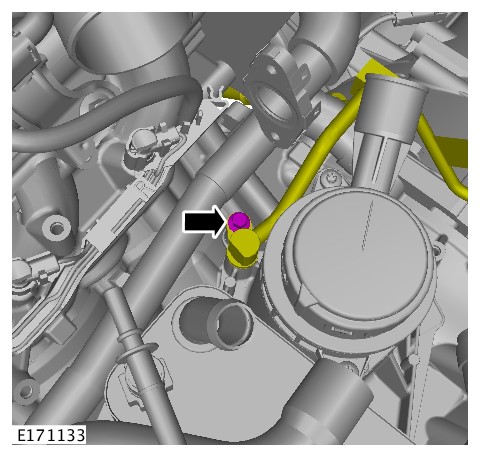

  23. E171133
    Torque: 10Nm

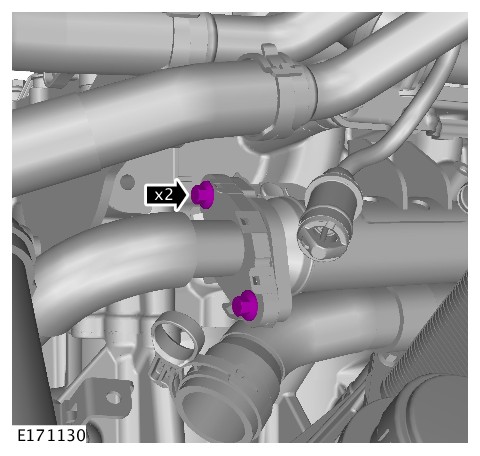

  24. E171130
    Torque: 10Nm

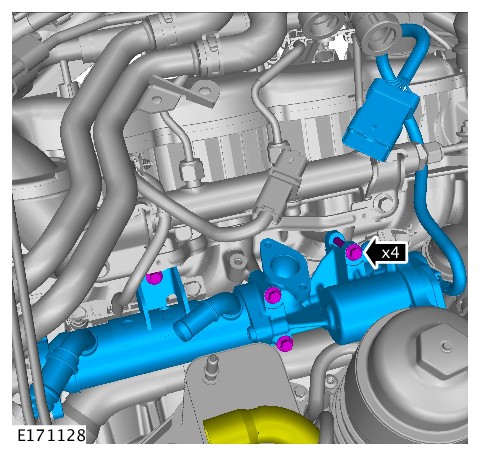

  25. E171128
    Torque: 10Nm

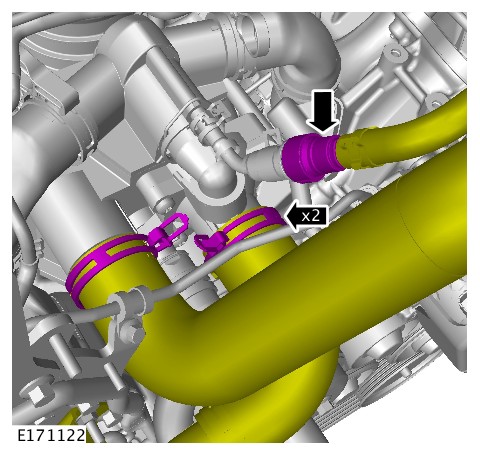

  26. E171122

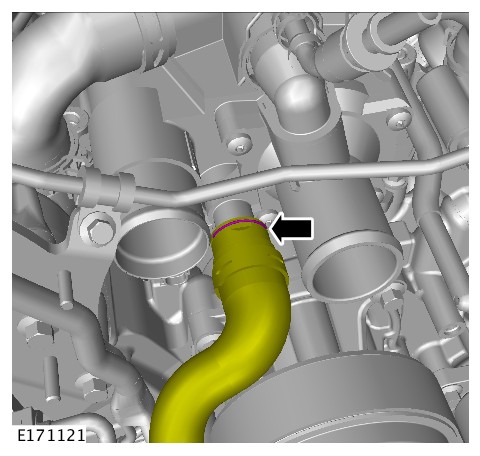

  27. E171121

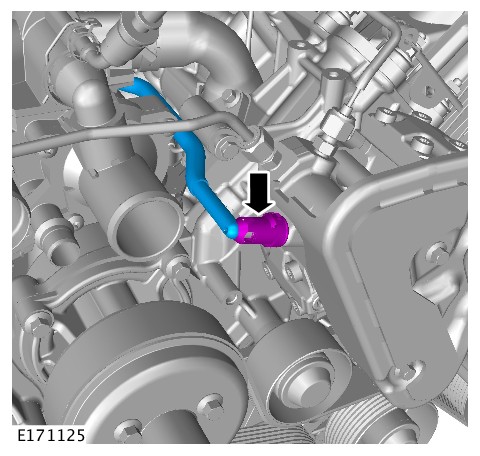

  28. E171125

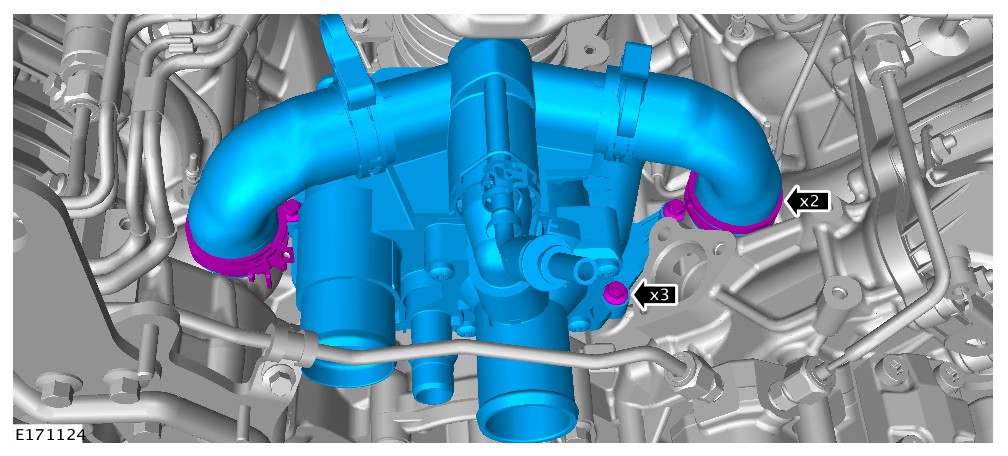

  29. E171124
    Torque: 10Nm

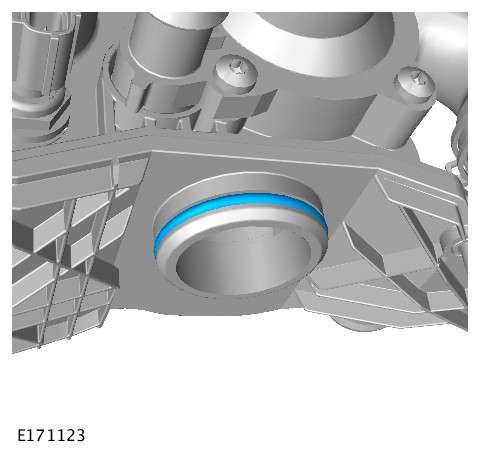

  30. CAUTIONS:

    • Remove and discard the O-ring seal.

    • A new O-ring seal is to be installed.

    E171123
  31. CAUTIONS:

    • Remove and discard the seal.

    • A new seal is to be installed.

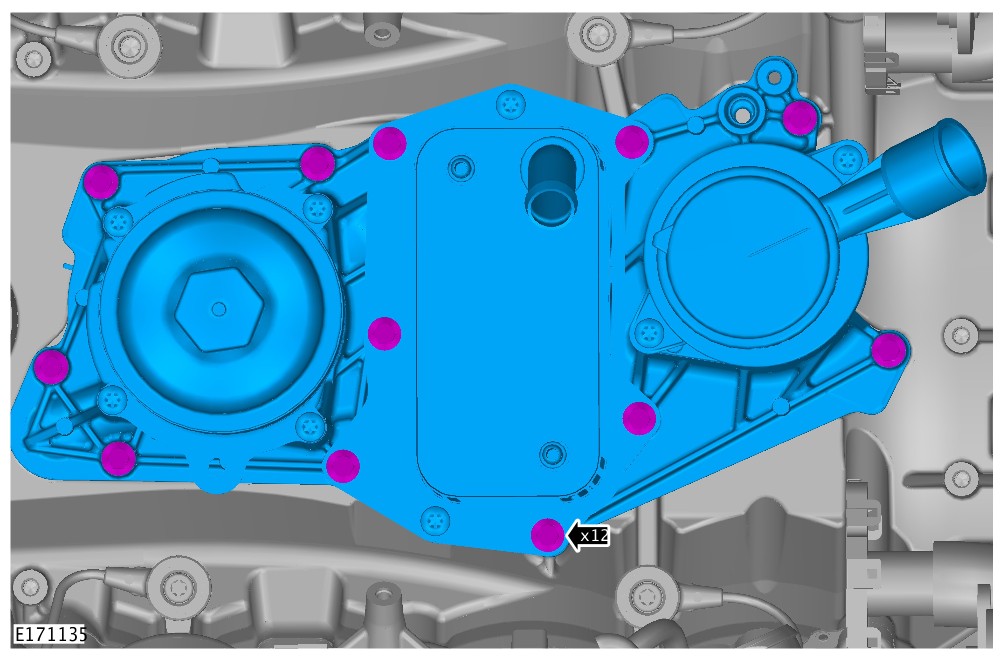

    E171135
    Torque: 10Nm
Installation
  1. To install, reverse the removal procedure.
