Published: 03-Jul-2013

2007.0 Range Rover Sport (LS), 309-00D

Exhaust System - TDV8 3.6L Diesel

Exhaust System Repair (G1604988)

GENERAL PROCEDURES
Check
NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.

  • Some components shown removed for clarity.


  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

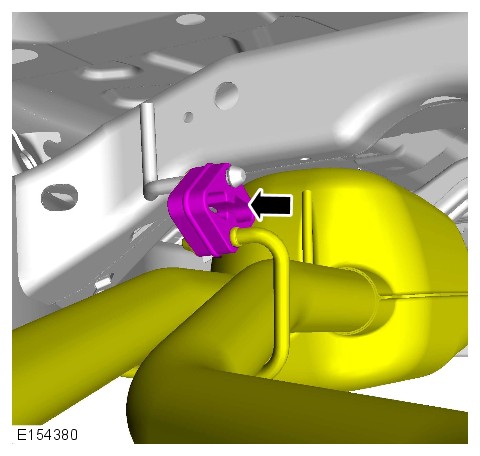

  2. E154380

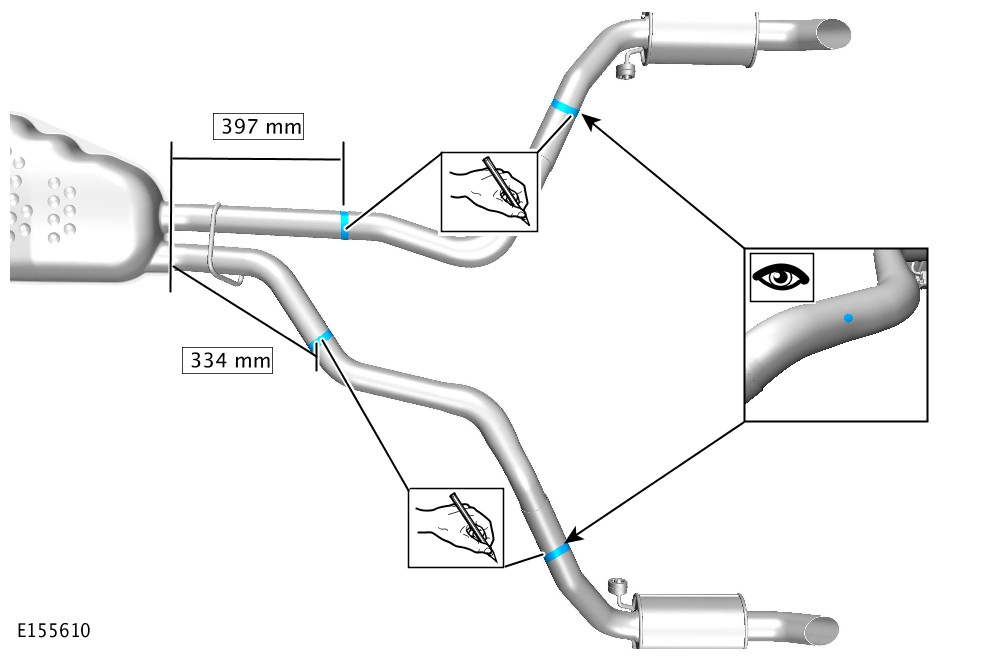

  3. E155610

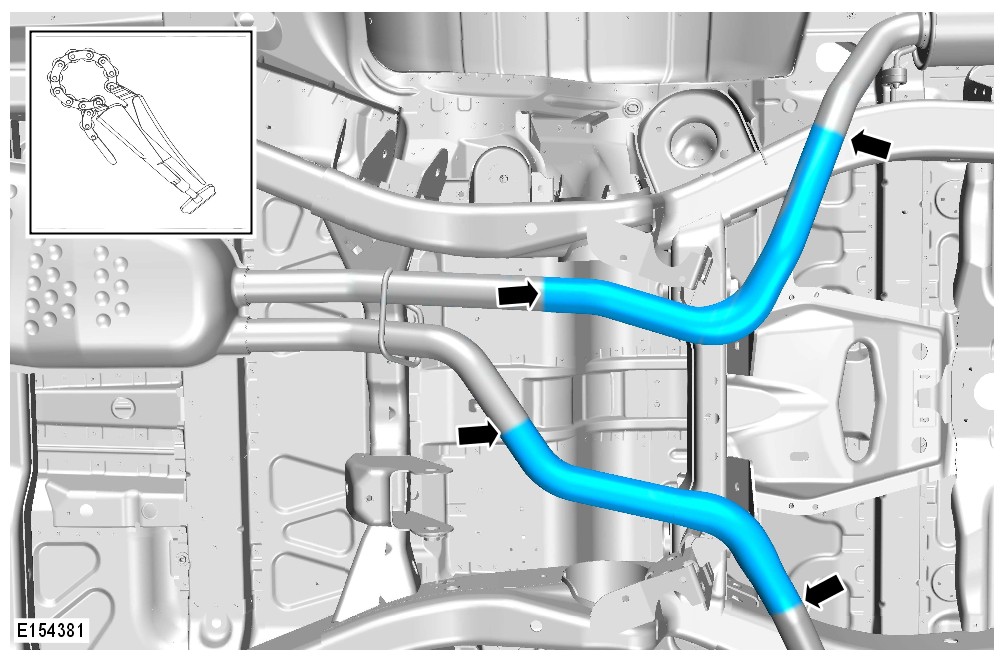

  4. E154381
Adjustment
NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.

  • Some components shown removed for clarity.


  1. E154380

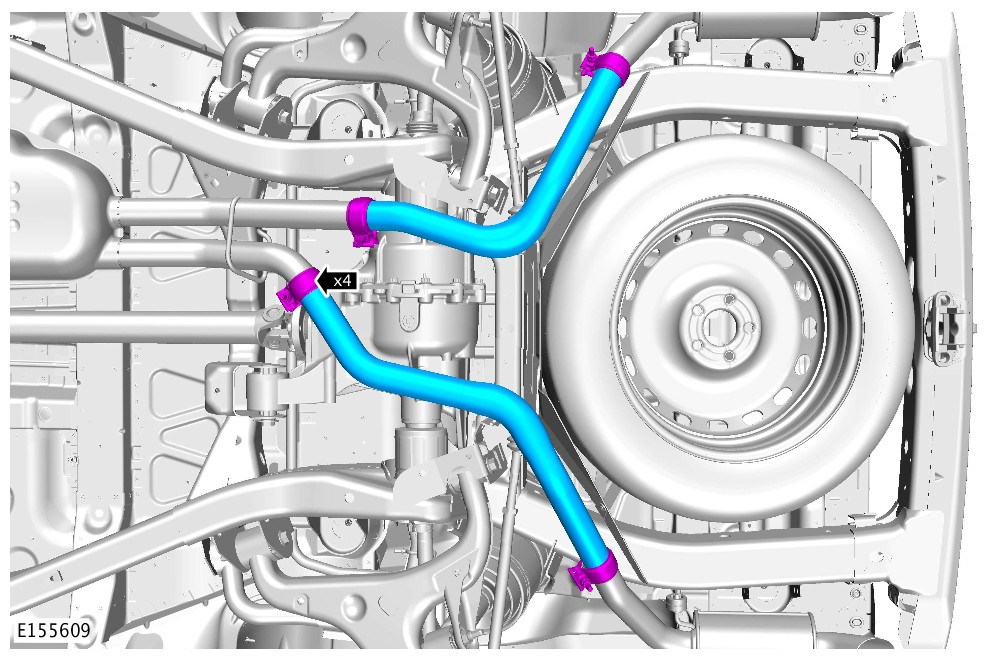

  2. E155609
    Torque: 55Nm

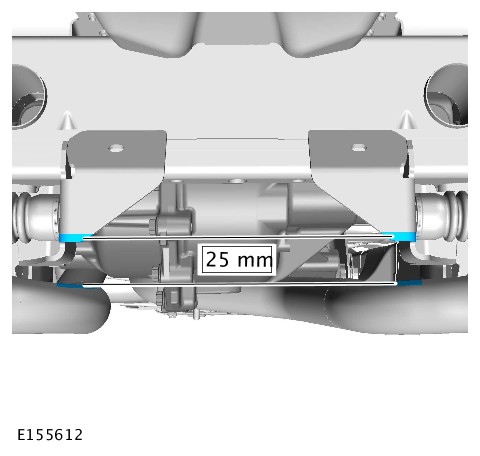

  3. E155612
    After the exhaust has been tightened, measure the clearance between exhaust and the chassis. If the measurement is not correct, loosen the exhaust retaining clamp and position the exhaust until the clearance is achieved.
