Published: 03-Feb-2012
2007.0 Range Rover Sport (LS), 309-00D
Exhaust System - TDV8 3.6L Diesel
Diesel Particulate Filter - Component Location (G1478946)
DESCRIPTION AND OPERATION

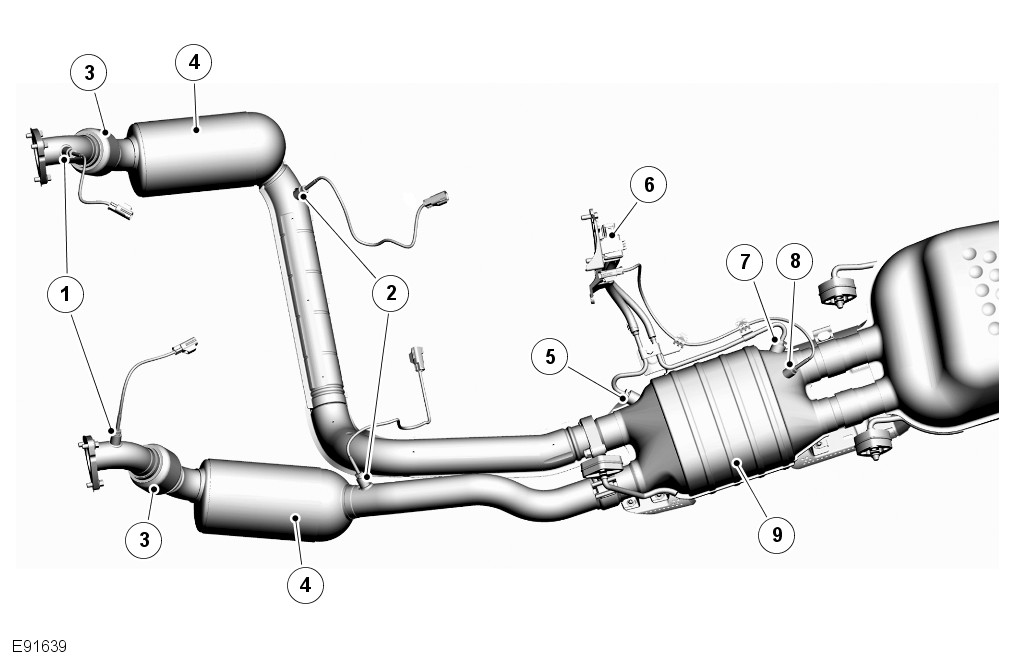

COMPONENT LOCATION - DIESEL PARTICULATE FILTER (DPF)
| Item | Description |
|---|---|
| 1 |
Exhaust gas temperature sensor (pre catalyst)
|
| 2 |
Exhaust gas temperature sensor (post catalyst)
|
| 3 |
Flexible decoupler
|
| 4 |
Catalytic converter
|
| 5 |
High pressure sensor pipe
|
| 6 |
Differential pressure sensor
|
| 7 |
Low pressure sensor pipe
|
| 8 |
Exhaust gas temperature sensor (Post DPF)
|
| 9 |
Diesel particulate filter
|
COMPONENT LOCATION - DIFFERENTIAL PRESSURE SENSOR
| Item | Description |
|---|---|
| 1 |
Low pressure connection
|
| 2 |
High pressure connection
|
| 3 |
Electrical connector
|
