Published: 25-Nov-2011

2007.0 Range Rover Sport (LS), 502-02

Full Frame and Body Mounting

Tow Bar Mounting Check (G1470510)

GENERAL PROCEDURES

Special Tool(s)

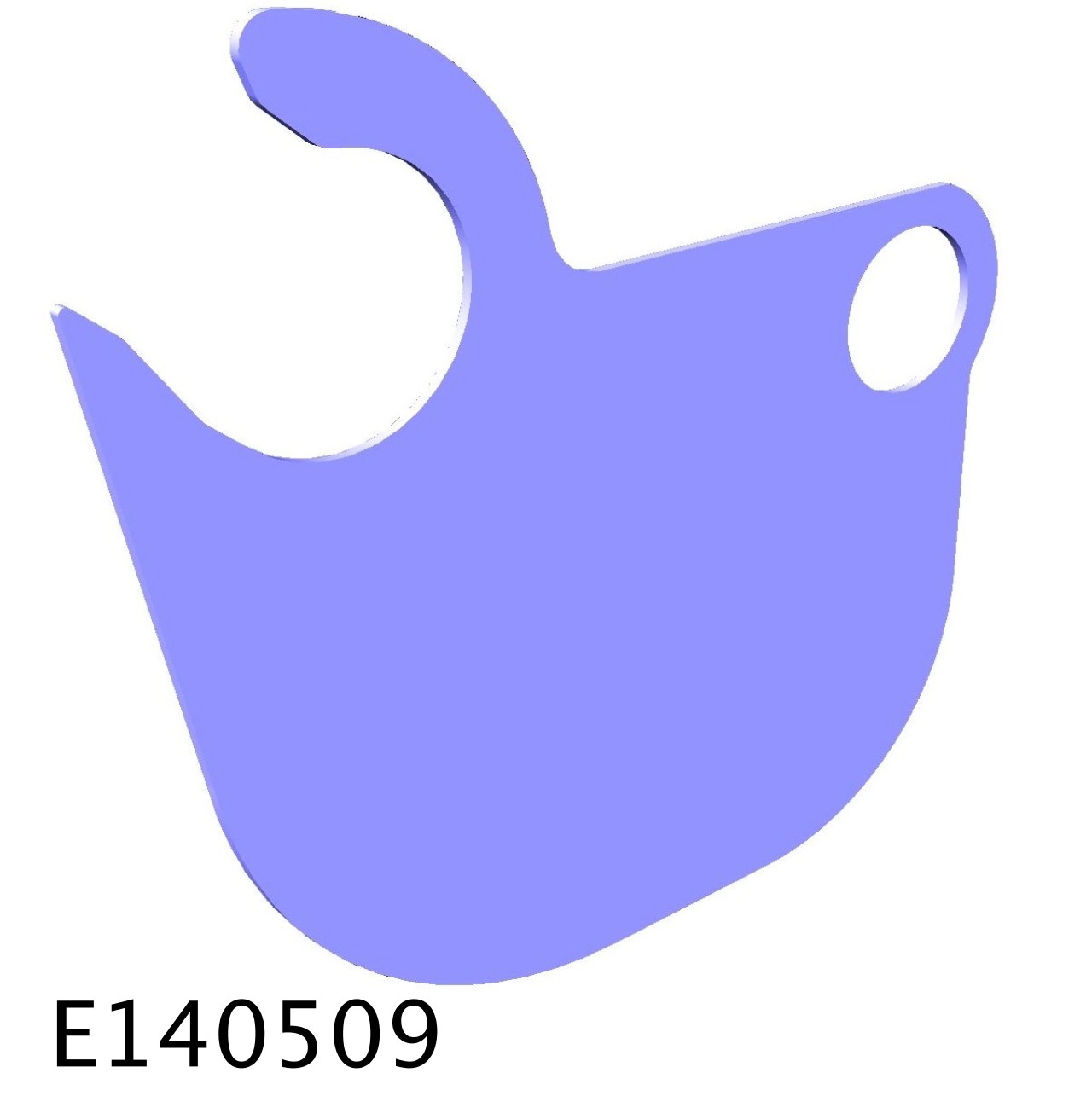

E140509

JLR-501-201

Tow Bar Gauge

  1. Pre test: Check the detachable tow bar locking pin is moving freely without sticking.
  2. Insert the tow bar into the chassis following the owners handbook instruction.
  3. CAUTION:

    The special tool must be flat against the tow bar ball before taking measurements.

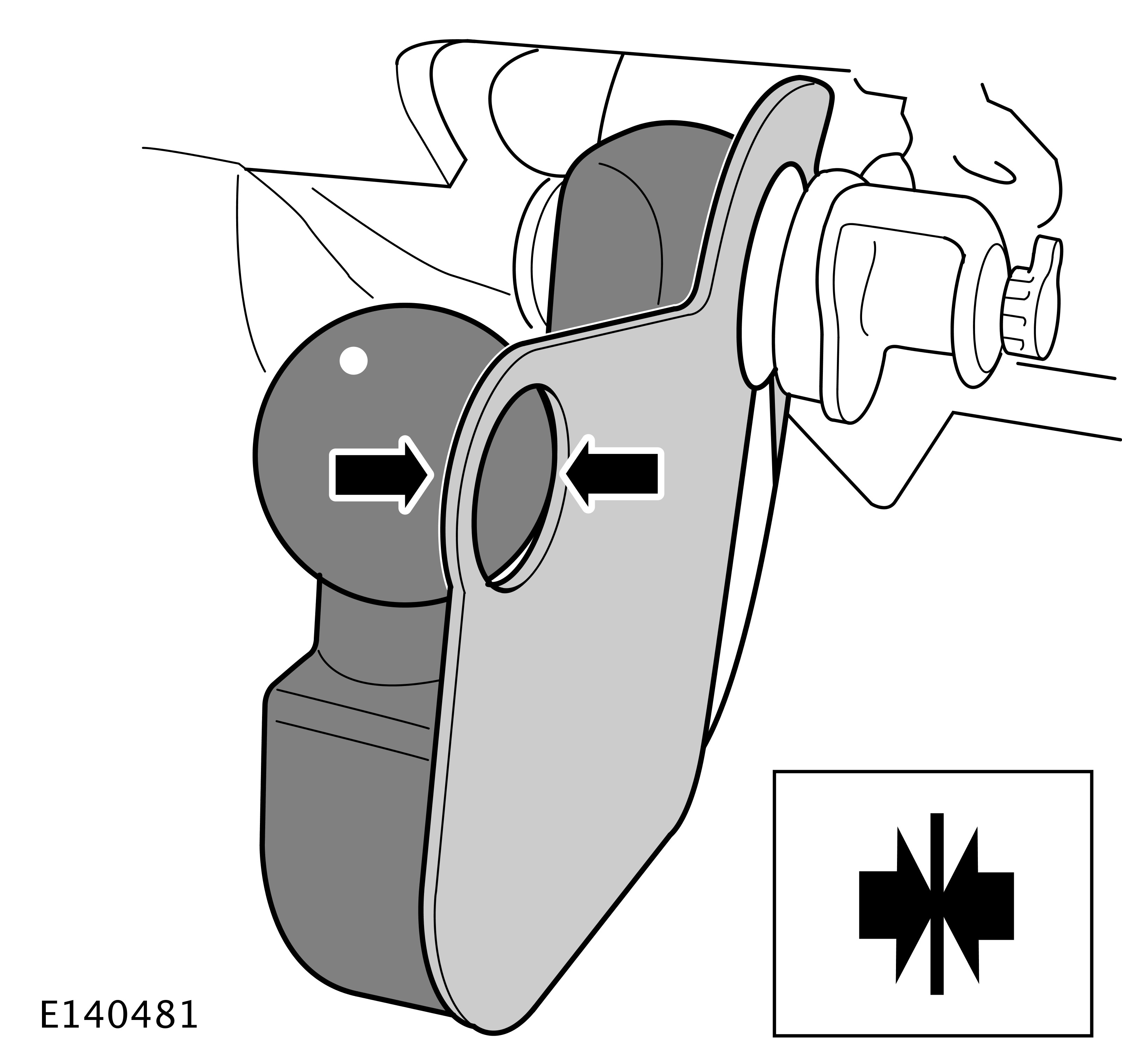

    E140481
    Hold the special tool JLR-501-201 against the tow bar as shown, failure to follow this instruction may result in an incorrect measurement.
  4. CAUTION:

    Make sure the special tool is mounted flush to the tow ball.

    NOTE:

    Note the position of the tow bar release handle.

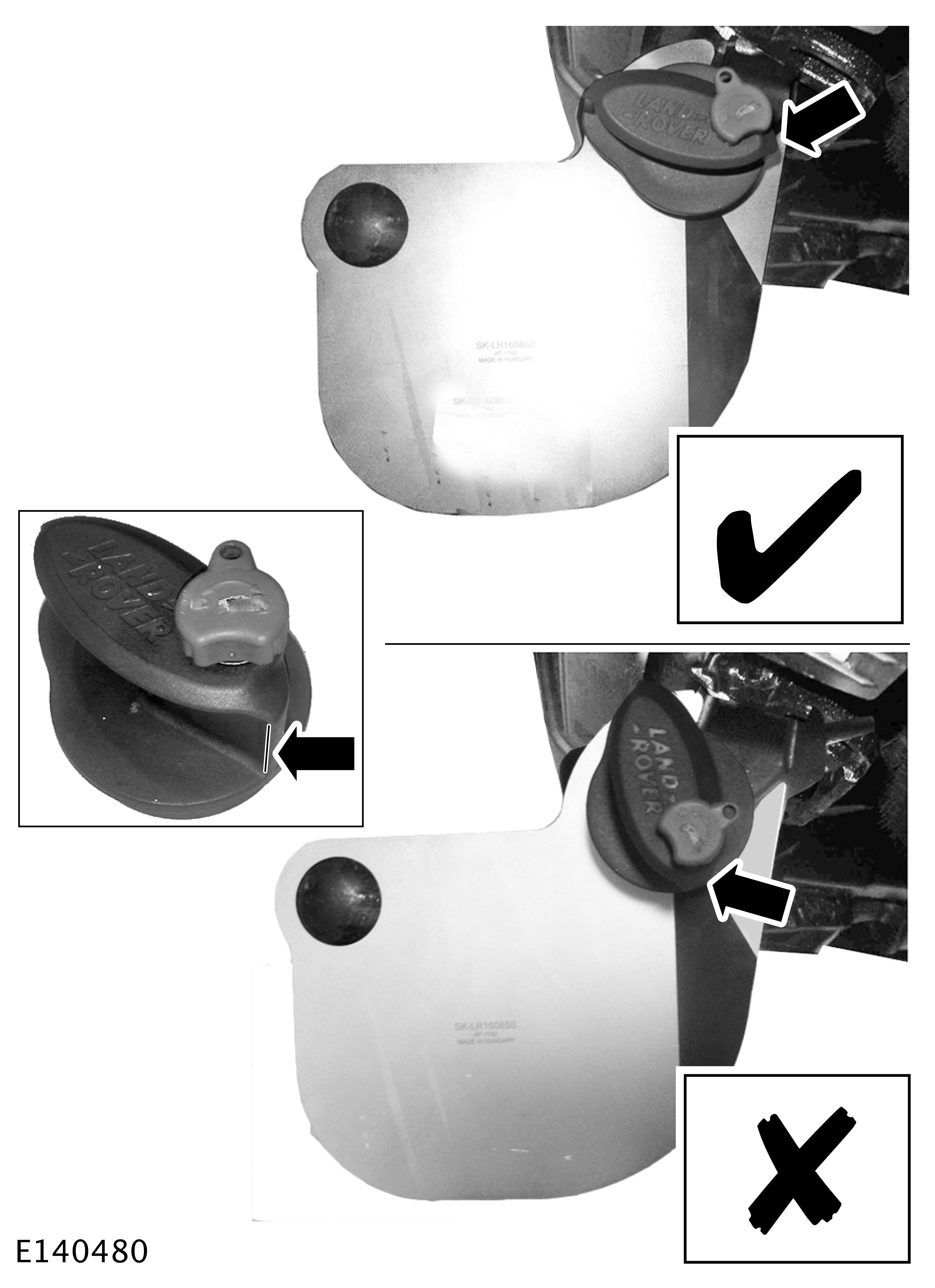

    E140480
    Install the special tool as shown.
  5. Check the position of the tow bar release handle against the special tool, and observe the following:
      • If the tow bar release handle points to the red area of the special tool, go to Step 6.
      • If the tow bar release handle points outside of the red area of the special tool, then the tow bar mounting is correct and no further action is required.
  6. Install a new tow bar and check the tow bar mounting following Steps 3 - 5.
      • If the tow bar release handle points to the red area of the special tool, install a new rear crossmember. For additional information, refer to: Rear Crossmember (502-02, Removal and Installation).
