Published: 02-Jan-2014

2007.0 Range Rover Sport (LS), 204-06

Ride and Handling Optimization

Direction Control Valve Solenoid (G1391849)

REMOVAL AND INSTALLATION
Removal
NOTE:

Removal steps in this procedure may contain installation details.

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

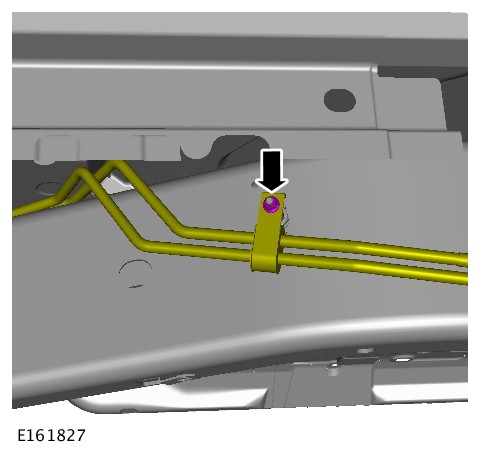

  2. E161827
    TORQUE: 10 Nm

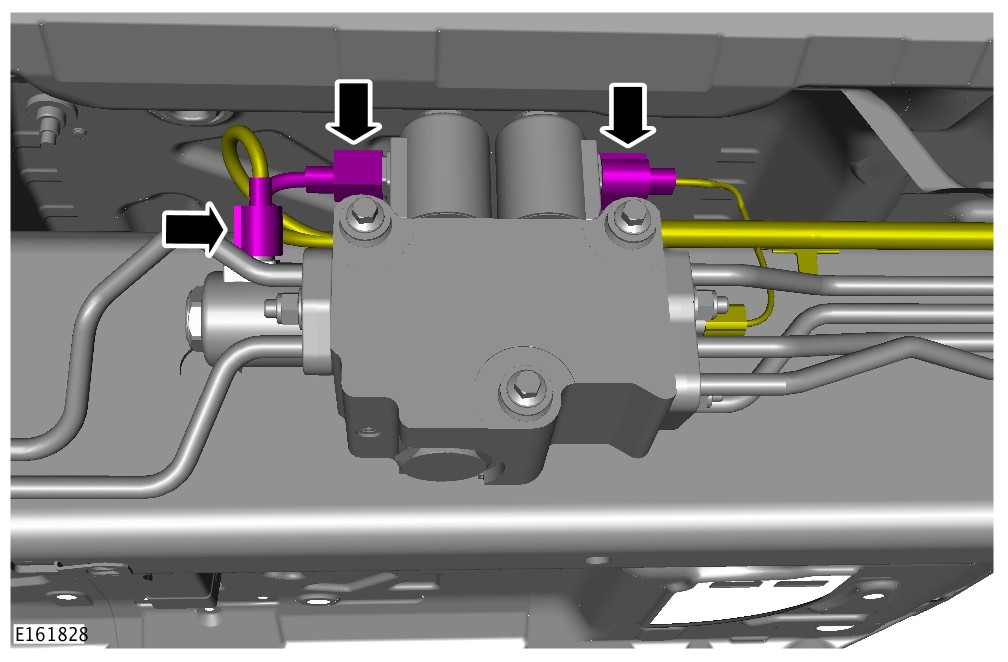

  3. E161828
  4. NOTE:

    Make sure there are two washers installed between the integrated body frame and the valve block lower retaining bolt.

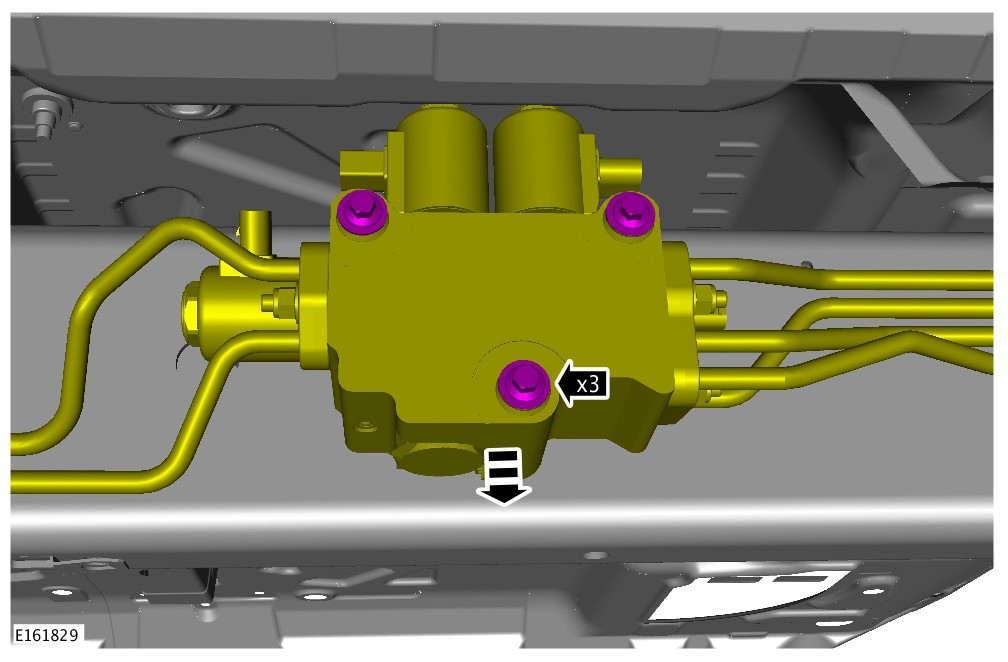

    E161829
    TORQUE: 23 Nm

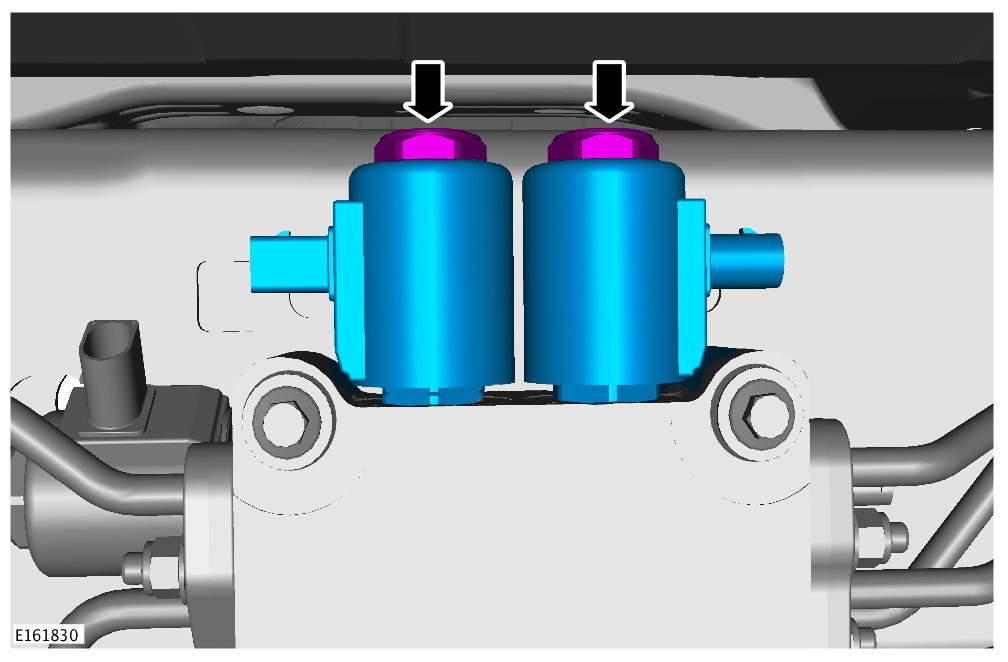

  5. E161830
    TORQUE: 5 Nm
      • •Install the O-ring seal.
Installation
  1. To install reverse the removal procedure.
