Published: 28-Feb-2019

2007.0 Range Rover Sport (LS), 501-11

Glass, Frames and Mechanisms

Front Door Window (G1373072)

REMOVAL AND INSTALLATION
  • 76.31.01
  • Front Door Window - Renew
  • All Derivatives
  • 0.20
  • USED WITHINS

Special Tool(s)

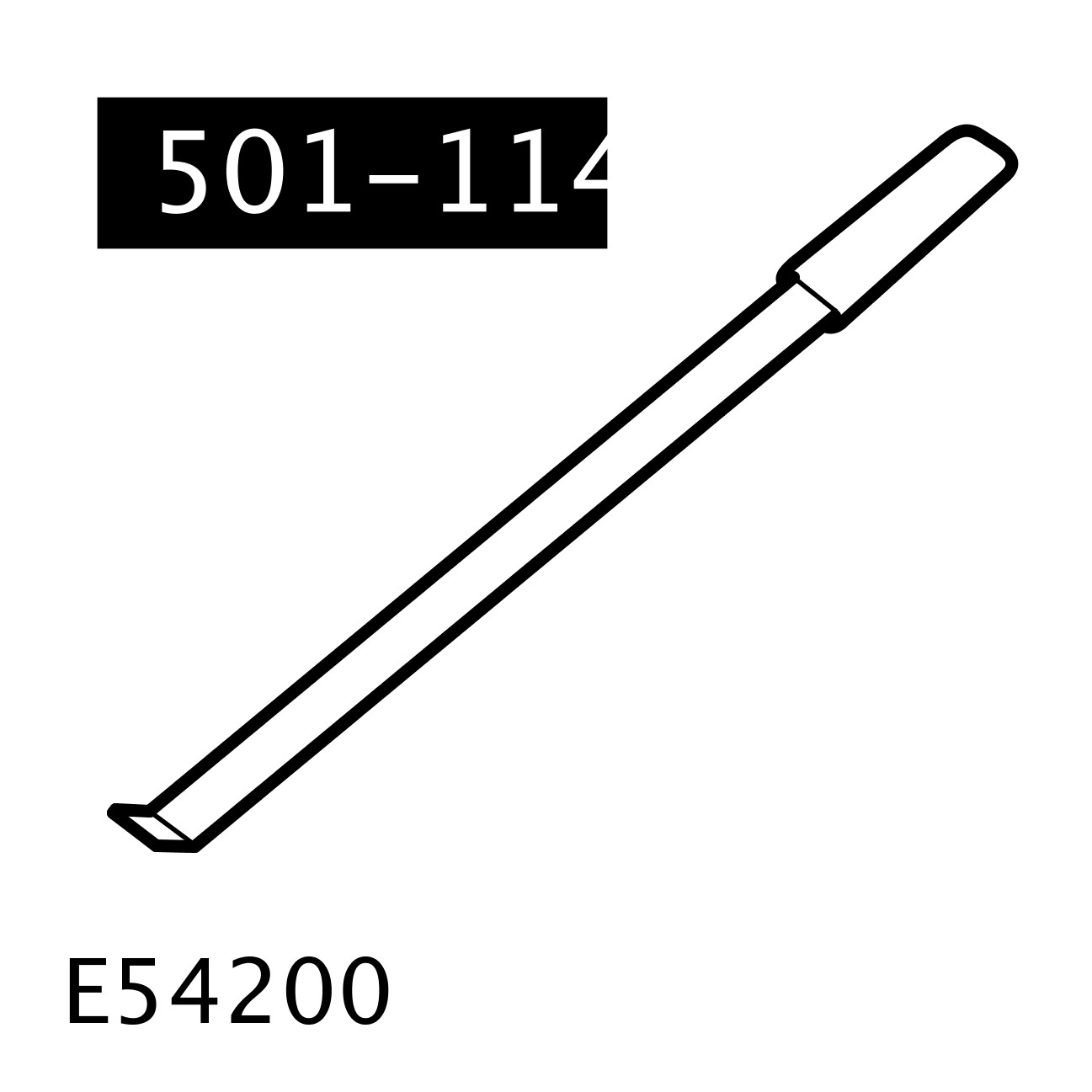

E54200

501-114

Release Lever, Door Glass

Removal

  1. Special Tool(s): 501-114

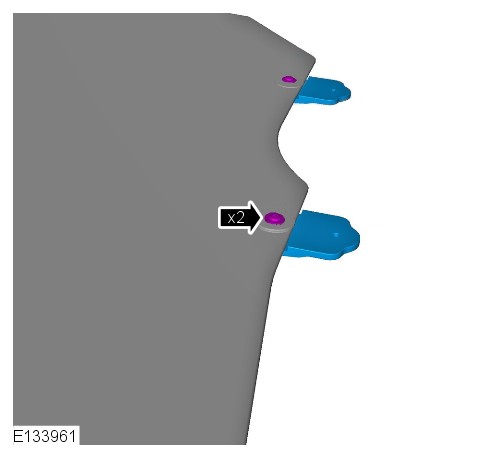

  2. E133961
Installation
  1. CAUTION:

    Make sure that the door glass retaining brackets are pushed to the edge of the door window glass to achieve minimum parallel gap.

    NOTE:

    This operation must be done for both retaining brackets.

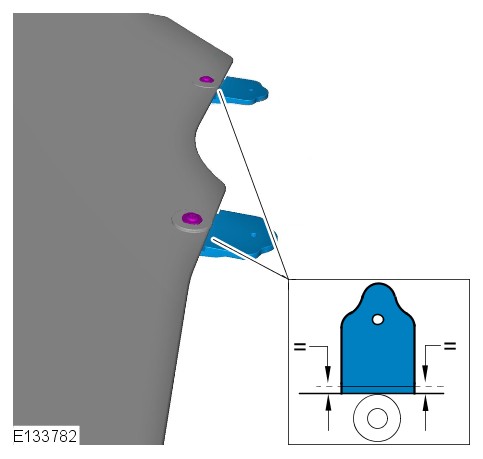

    E133782
    Torque: 6Nm
  2. CAUTIONS:

    • Make sure that any grease or lubricant is removed from the retaining brackets prior to installation of the anti-rattle pads.

    • Make sure that the anti-rattle pad is installed in the orientation illustrated.

    NOTE:

    This operation must be done for both retaining brackets.

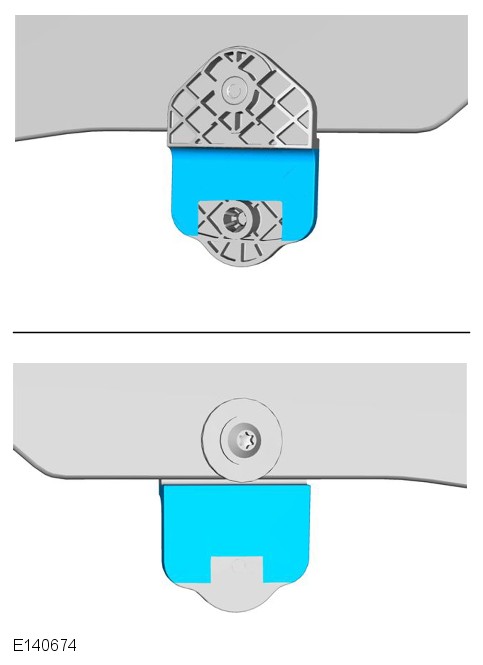

    E140674
  3. To install, reverse the removal procedure.
