Published: 11-May-2011

2007.0 Range Rover Sport (LS), 412-02B

Auxiliary Heating

Fuel Fired Booster Heater Glow Plug And Burner Assembly - TDV8 3.6L Diesel (G1347073)

REMOVAL AND INSTALLATION
  • 80.40.06
  • Fuel Fired Booster Heater (FFBH) - Glow Plug and Burner Assembly - Renew
  • TDV8
  • 1.40
  • USED WITHINS
Removal
  1. Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. WARNING:

    Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.
  3. Refer to: Fuel Fired Booster Heater - TDV8 3.6L Diesel (412-02B Auxiliary Heating, Removal and Installation).

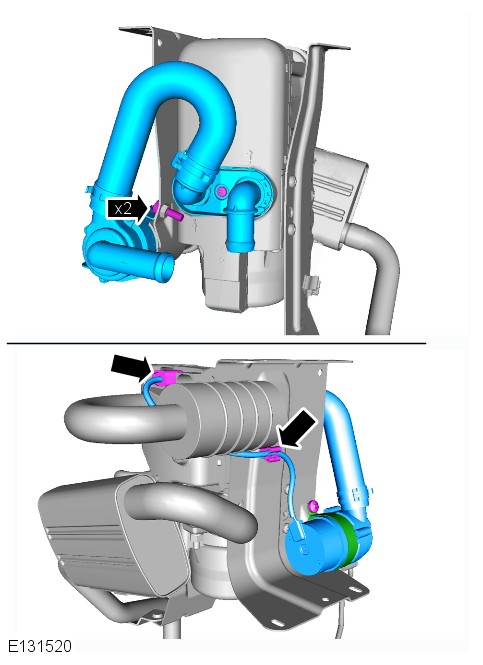

  4. E131520
    7.5 Nm

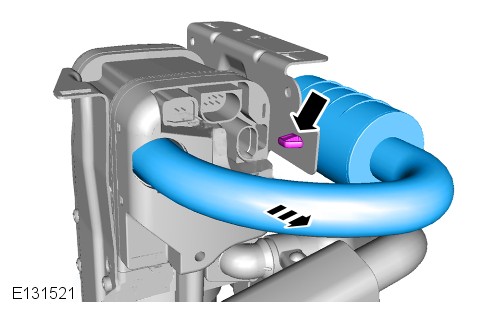

  5. E131521

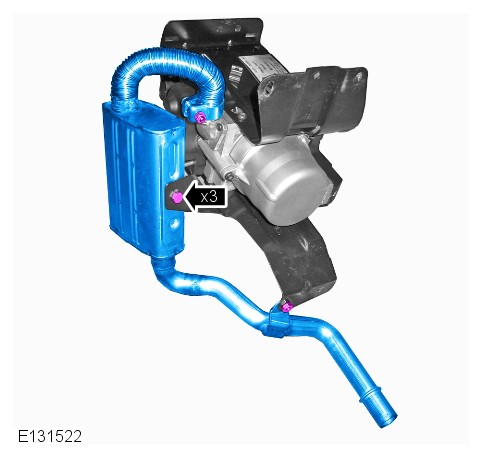

  6. E131522
    10 Nm

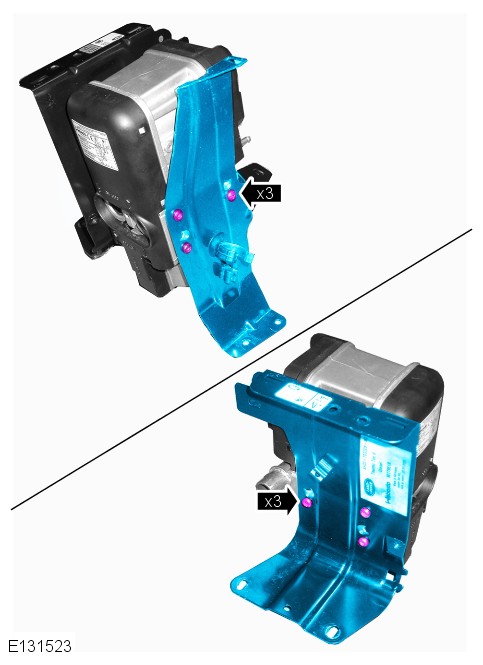

  7. E131523
    10 Nm

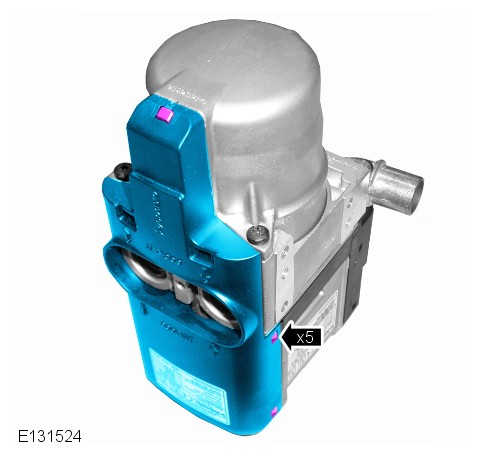

  8. E131524

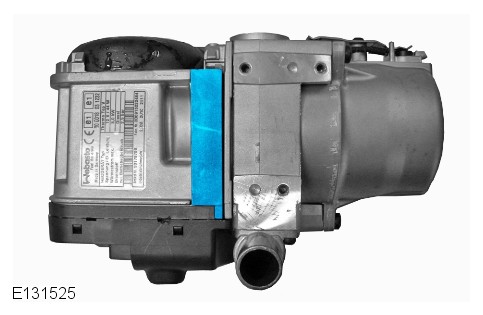

  9. E131525

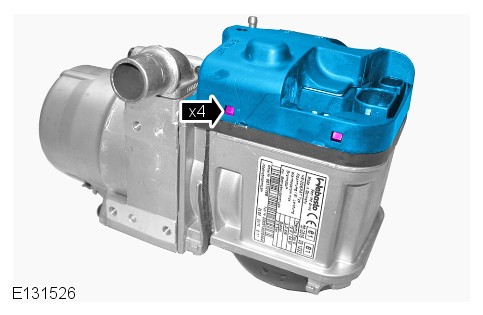

  10. E131526

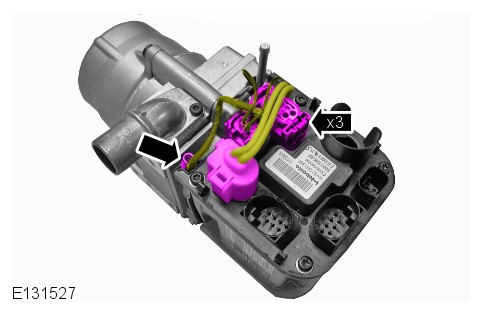

  11. E131527

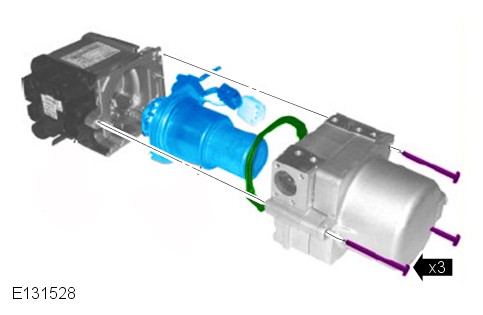

  12. E131528
    7 Nm
Installation
  1. To install, reverse the removal procedure.
  2. Refer to: Fuel Fired Booster Heater - TDV8 3.6L Diesel (412-02B Auxiliary Heating, Removal and Installation).
