Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-04F

Fuel Charging and Controls - Turbocharger - TDV8 3.6L Diesel

Turbocharger Actuator Rod (G1313590)

REMOVAL AND INSTALLATION
Removal
CAUTION:

Always plug any open connections to prevent contamination.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

  1. Remove the left hand turbocharger or right hand turbocharger as necessary.For additional information, refer to: (303-04F Fuel Charging and Controls - Turbocharger - TDV8 3.6L Diesel)
    Left Turbocharger (Removal and Installation),
    Right Turbocharger (Removal and Installation).
  2. CAUTION:

    Make sure that no parts of the turbocharger actuator linkage are allowed to move beyond the normal operating limits. Failure to follow this instruction may result in damage to the vehicle.

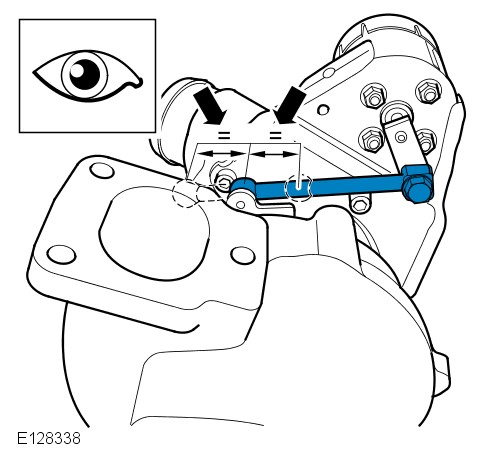

    E128338
    Position the turbocharger actuator connecting rod to the mid point position.

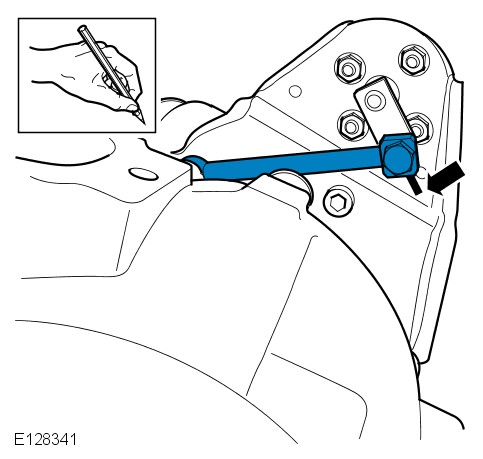

  3. E128341
    Using a suitable marker, mark the mid point position of the actuator arm.
  4. CAUTION:

    Make sure that two spanners are used to remove the bolt. Failure to follow this instruction may result in damage to the vehicle.

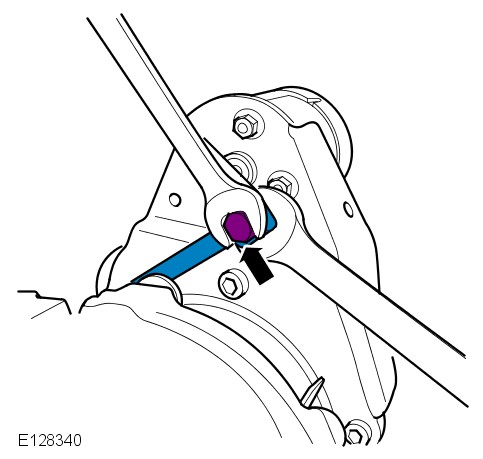

    E128340
    Remove the bolt.

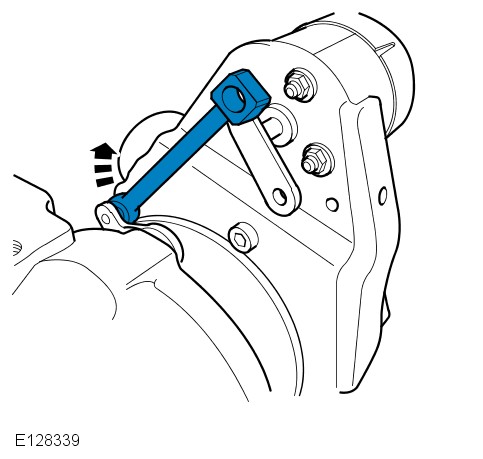

  5. E128339
    Remove the turbocharger actuator connecting rod.
Installation
  1. CAUTIONS:

    • Make sure that no parts of the turbocharger actuator linkage are allowed to move beyond the normal operating limits. Failure to follow this instruction may result in damage to the vehicle.

    • Make sure that the marks are aligned. Failure to follow this instruction may result in damage to the vehicle.

    • Make sure that two spanners are used to install the bolt. Failure to follow this instruction may result in damage to the vehicle.

    To install, reverse the removal procedure.
  2. E128340
    Tighten the bolt to 5 Nm.
  3. Install the left hand turbocharger or right hand turbocharger as necessary.For additional information, refer to: (303-04F Fuel Charging and Controls - Turbocharger - TDV8 3.6L Diesel)
    Left Turbocharger (Removal and Installation),
    Right Turbocharger (Removal and Installation).
