2007.0 Range Rover Sport (LS), 501-10

Seating

Front Row Seat Armrest (G1226078)

REMOVAL AND INSTALLATION
  • 78.10.01
  • Arm rest assembly - front seat - renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal

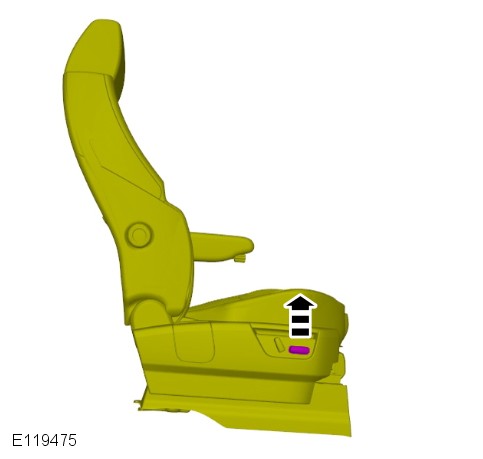

  1. E119475
    Raise the seat base for access.

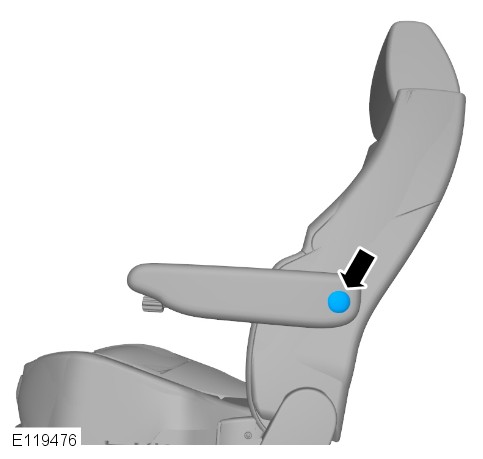

  2. E119476
    Remove the cover.

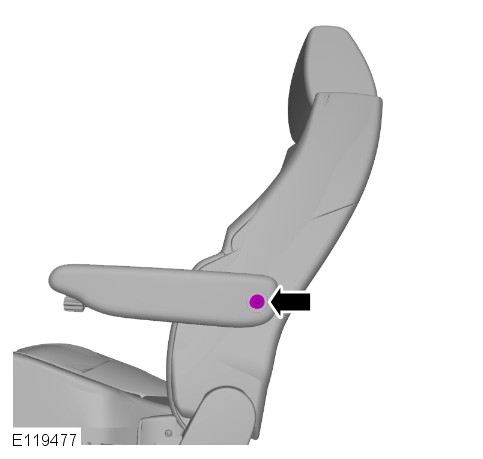

  3. E119477
    Remove the Torx bolt.
  4. CAUTION:

    Make sure that the seat armrest slot is correctly aligned before removing the seat armrest. Failure to follow this instruction may result in damage to the vehicle.

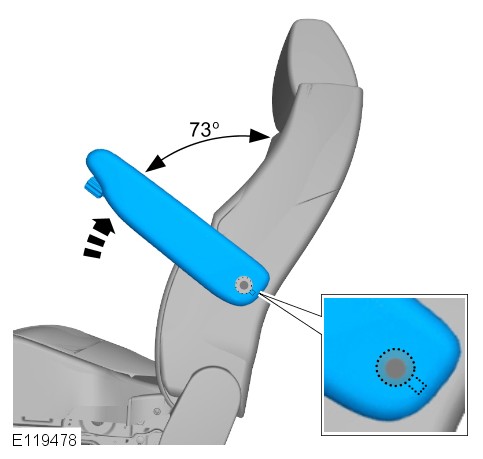

    E119478
    Remove the seat armrest.
      • Raise the seat armrest to the position shown.
      • Slide the seat armrest towards the centre of the vehicle.
Installation
  1. E119477
    To install, reverse the removal procedure.
      • Tighten the Torx bolt to 10 Nm (7 lb.ft).
