2007.0 Range Rover Sport (LS), 307-01E

Automatic Transmission/Transaxle - TDV6 2.7L Diesel/TDV8 3.6L Diesel/V8 N/A 4.4L Petrol/V8 S/C 4.2L Petrol

Input Shaft Seal (G1109197)

REMOVAL AND INSTALLATION
  • 44.20.17
  • Oil seal - input shaft - renew
  • TDV8
  • 7.40
  • USED WITHINS
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the transmission assembly.
    Refer to: Transmission (307-01A Automatic Transmission/Transaxle - V8 S/C 4.2L Petrol, Removal and Installation).
    Refer to: Transmission (307-01B Automatic Transmission/Transaxle - V8 N/A 4.4L Petrol, Removal and Installation).
    Refer to: Transmission (307-01C Automatic Transmission/Transaxle - TDV6 2.7L Diesel, Removal and Installation).
    Refer to: Transmission (307-01D Automatic Transmission/Transaxle - TDV8 3.6L Diesel, Removal and Installation).
  3. WARNING:

    Do not let the torque converter drop out of the transmission. Failure to follow this instruction may result in personal injury.

    E106843

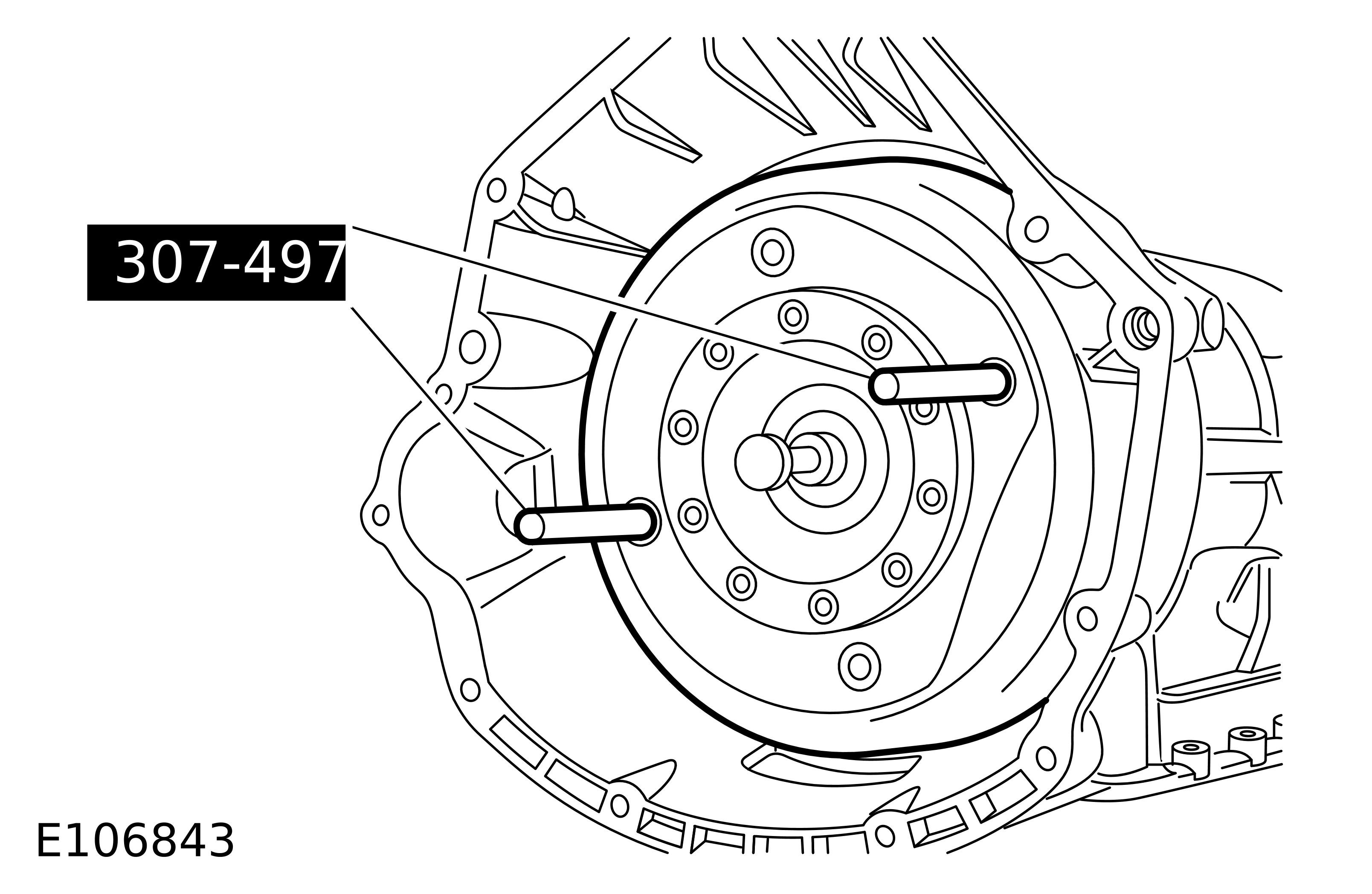

    Using the special tools, remove the torque converter. Drain any remaining fluid into a suitable container.
  4. WARNING:

    Make sure the transmission housing seal face is not damaged when removing the torque converter seal. Failure to follow this instruction may result in damage to the vehicle.

    E30836

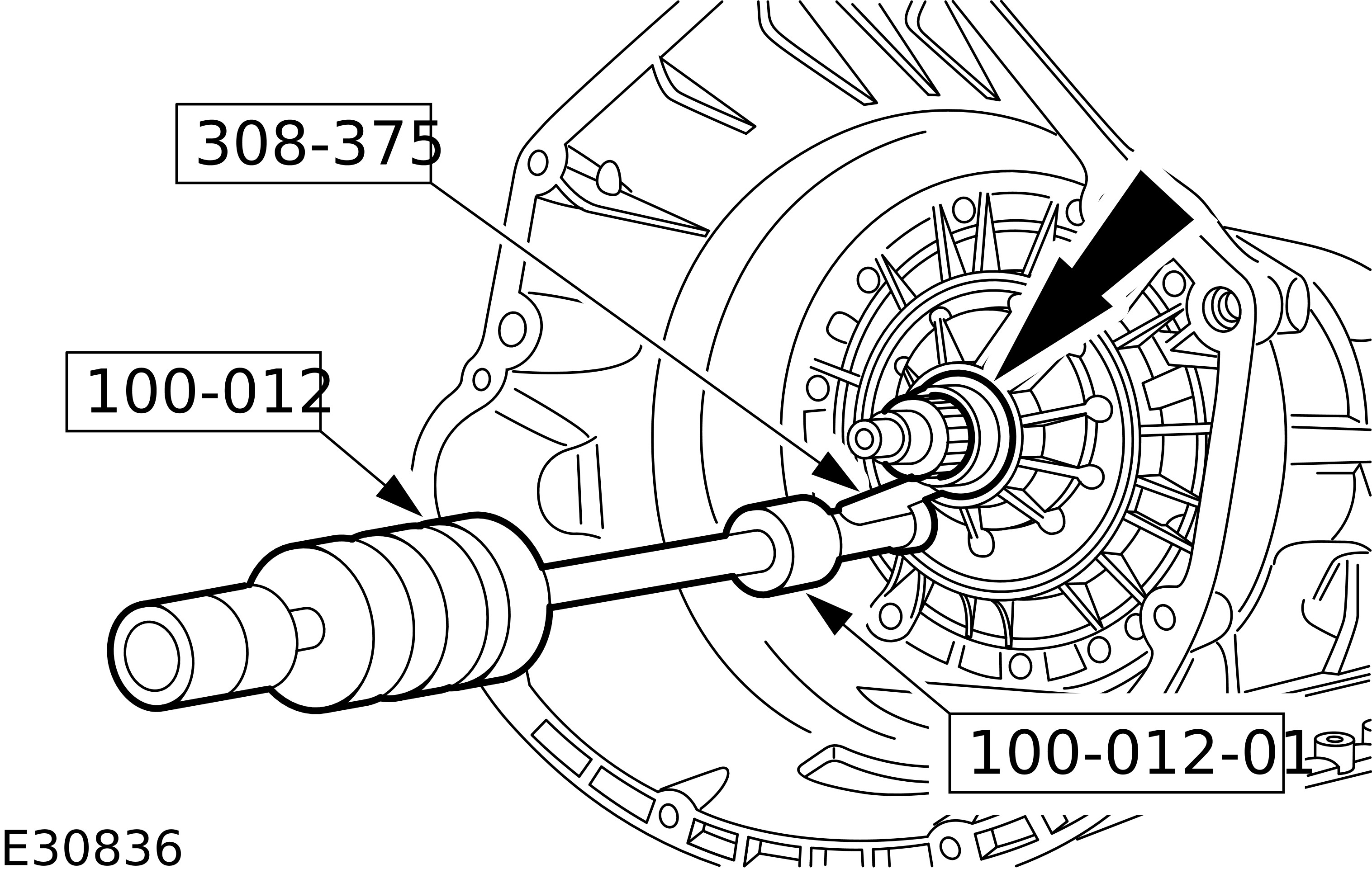

    Using the special tools, remove the input shaft seal.
  5. NOTE:

    Using a suitable metal surface cleaner meeting Jaguar specification. clean the seal face on the housing before fitting the new seal.

    E30837

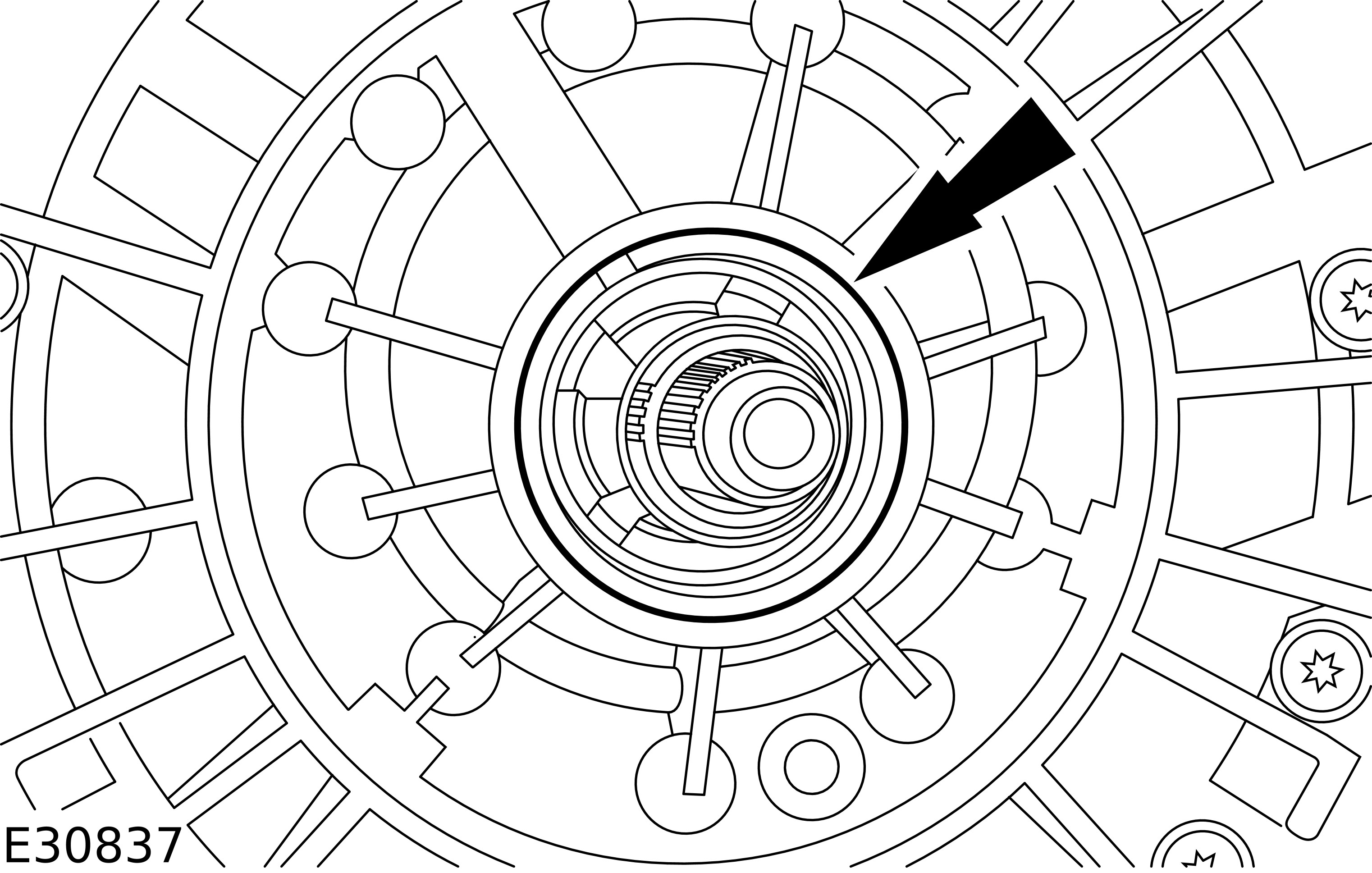

    Clean and inspect the transmission housing seal face.
Installation
  1. E30838

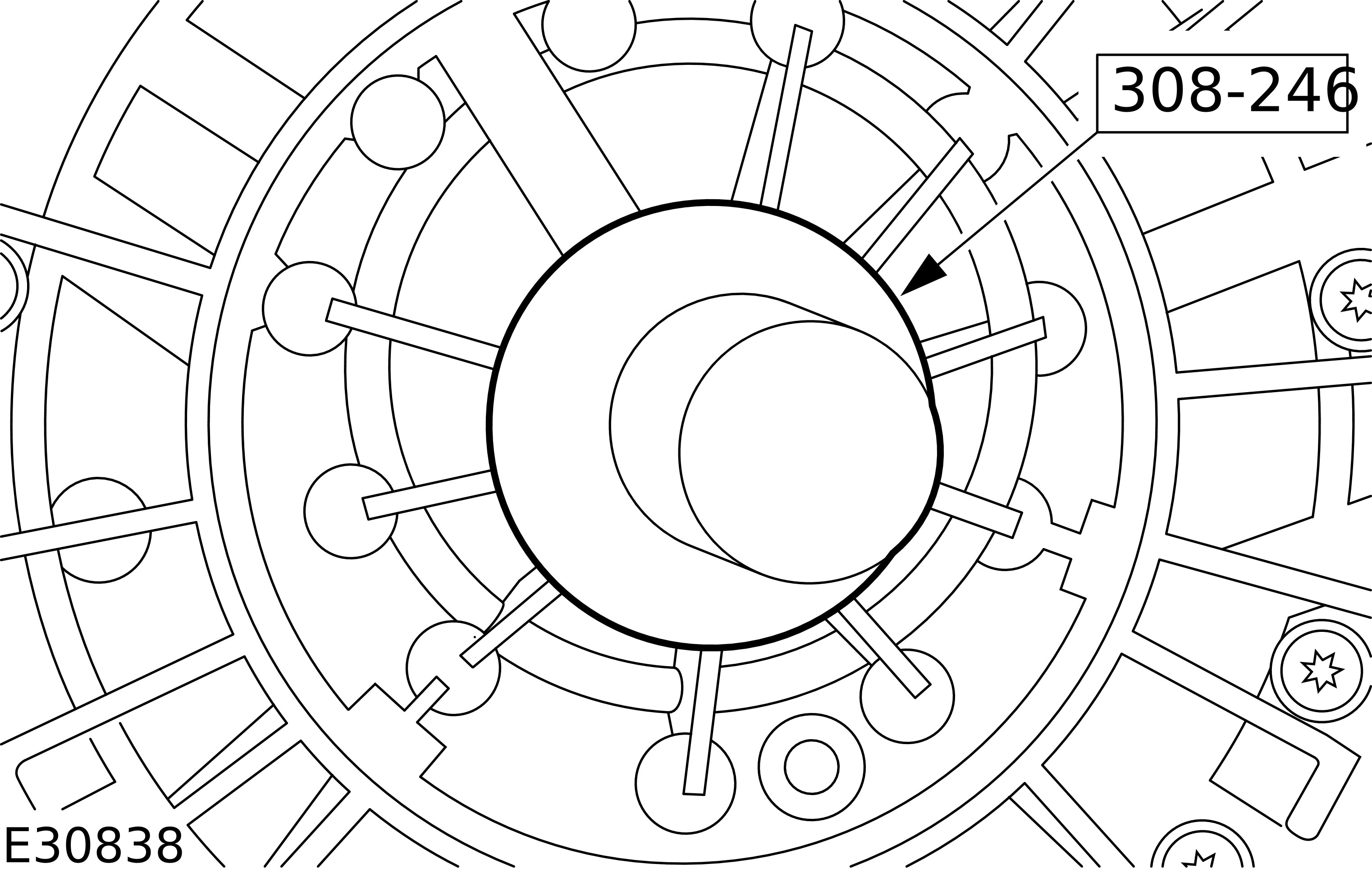

    Using the special tool, install a new input shaft seal.
  2. WARNING:

    Do not let the torque converter drop out of the transmission. Failure to follow this instruction may result in personal injury.

    NOTE:

    The torque converter hub must engage fully in the oil pump drive gear.

    E106843
    Using the special tools, install the torque converter. Remove the special tools.
  3. Install the transmission assembly.
    Refer to: Transmission (307-01A Automatic Transmission/Transaxle - V8 S/C 4.2L Petrol, Removal and Installation).
    Refer to: Transmission (307-01B Automatic Transmission/Transaxle - V8 N/A 4.4L Petrol, Removal and Installation).
    Refer to: Transmission (307-01C Automatic Transmission/Transaxle - TDV6 2.7L Diesel, Removal and Installation).
    Refer to: Transmission (307-01D Automatic Transmission/Transaxle - TDV8 3.6L Diesel, Removal and Installation).
