2007.0 Range Rover Sport (LS), 309-00D

Exhaust System - TDV8 3.6L Diesel

Diesel Particulate Filter Differential Pressure Sensor (G1030696)

REMOVAL AND INSTALLATION
Removal
WARNING:

Observe due care when working near a hot exhaust system.

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. E97094
    Disconnect the diesel particulate filter (DPF), differential pressure sensor electrical connector.
  3. E97095
    Release the DPF differential pressure sensor.
      • Release the clip.
  4. CAUTION:

    Make a note of the connection orientation of the high and low pressure hoses to the sensor ports. Make sure the hoses are located to the correct sensor port when installed. Failure to follow these instructions may result in damage to the vehicle.

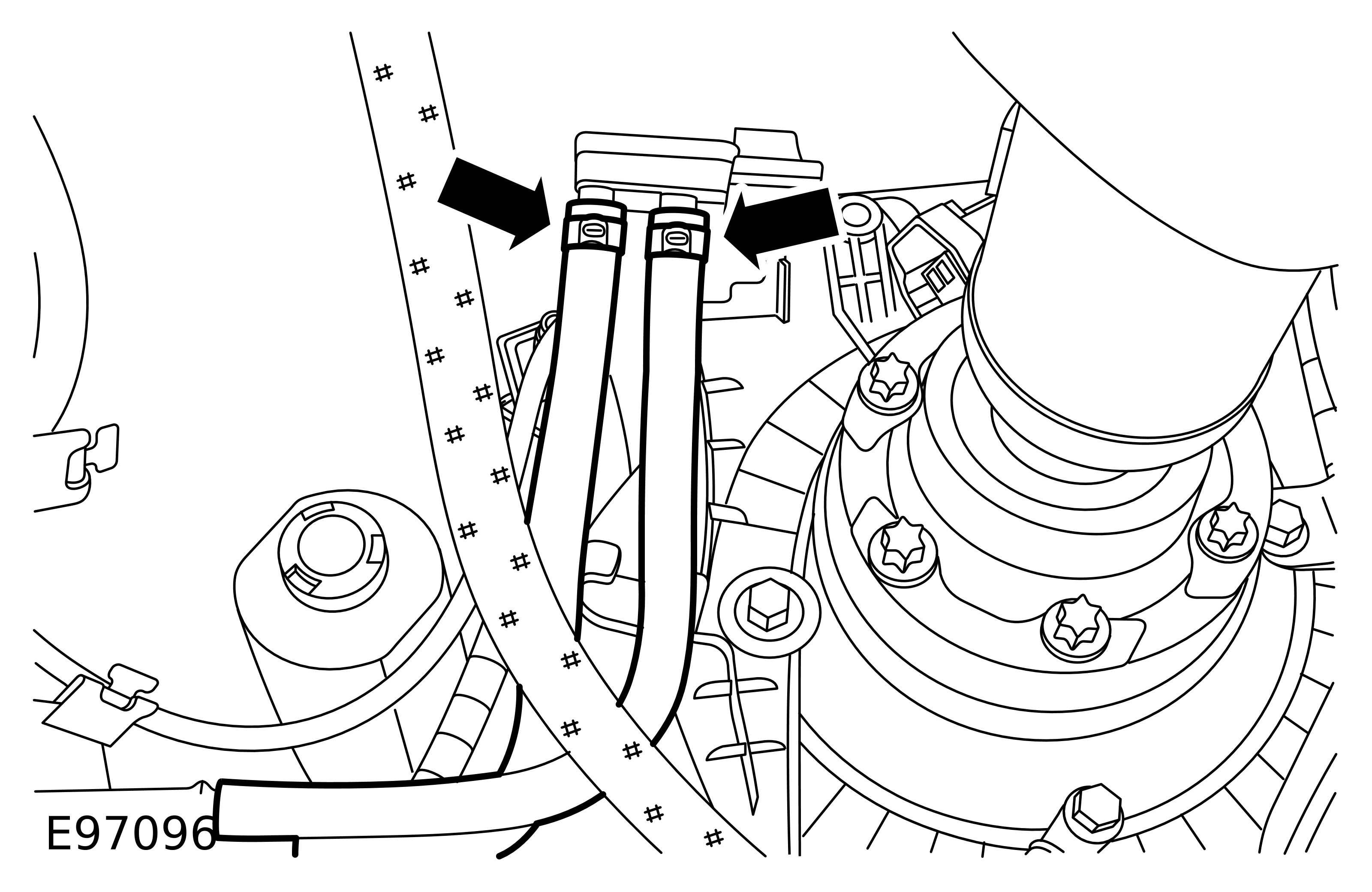

    E97096
    Disconnect the high and low pressure hoses from the DPF differential pressure sensor.
      • Release the 2 clips.
Installation
  1. Connect the high and low pressure hoses to the DPF differential pressure sensor.
      • Secure the clips.
  2. Secure the DPF differential pressure sensor.
      • Secure with the clip.
  3. Connect the DPF differential pressure sensor electrical connector.
