2007.0 Range Rover Sport (LS), 303-14D

Electronic Engine Controls - TDV8 3.6L Diesel

Exhaust Gas Temperature Sensor (G1030695)

REMOVAL AND INSTALLATION
Removal
WARNING:

Observe due care when working near a hot exhaust system.

NOTE:

LH pre-catalytic converter exhaust gas temperature sensor shown, post catalytic converter and post diesel particulate filter (DPF) sensors similar.

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. NOTE:

    RH shown, LH is similar.

    E77147
    Release the LH catalytic converter.
      • Remove the 3 bolts.
  3. NOTE:

    RH catalytic converter shown removed for clarity.

    E77256
    Loosen the catalytic converter to diesel particulate filter (DPF) retaining clamp.

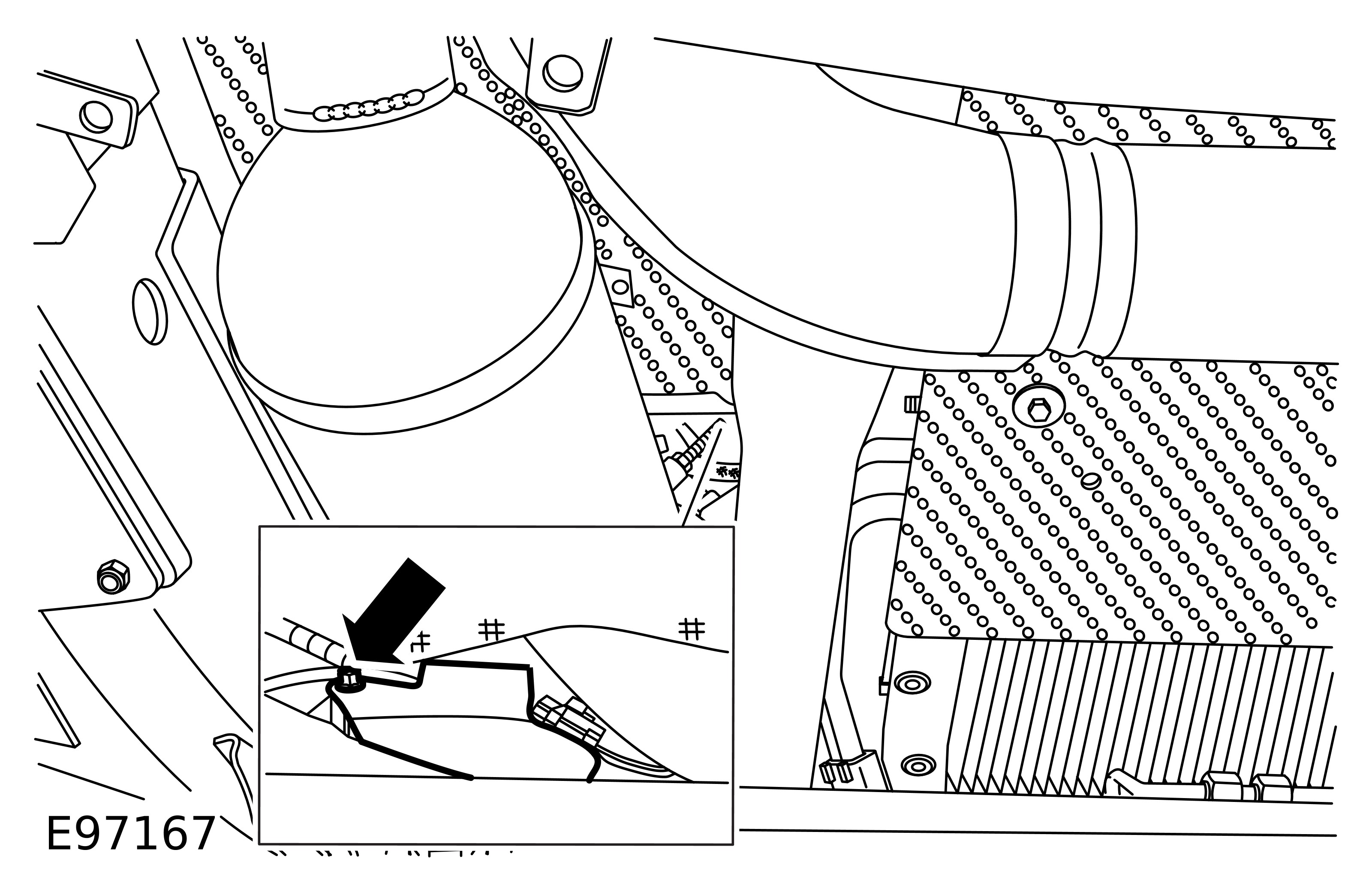

  4. E97167
    Remove the exhaust gas temperature sensor electrical connector heat shield.
      • Remove the bolt.

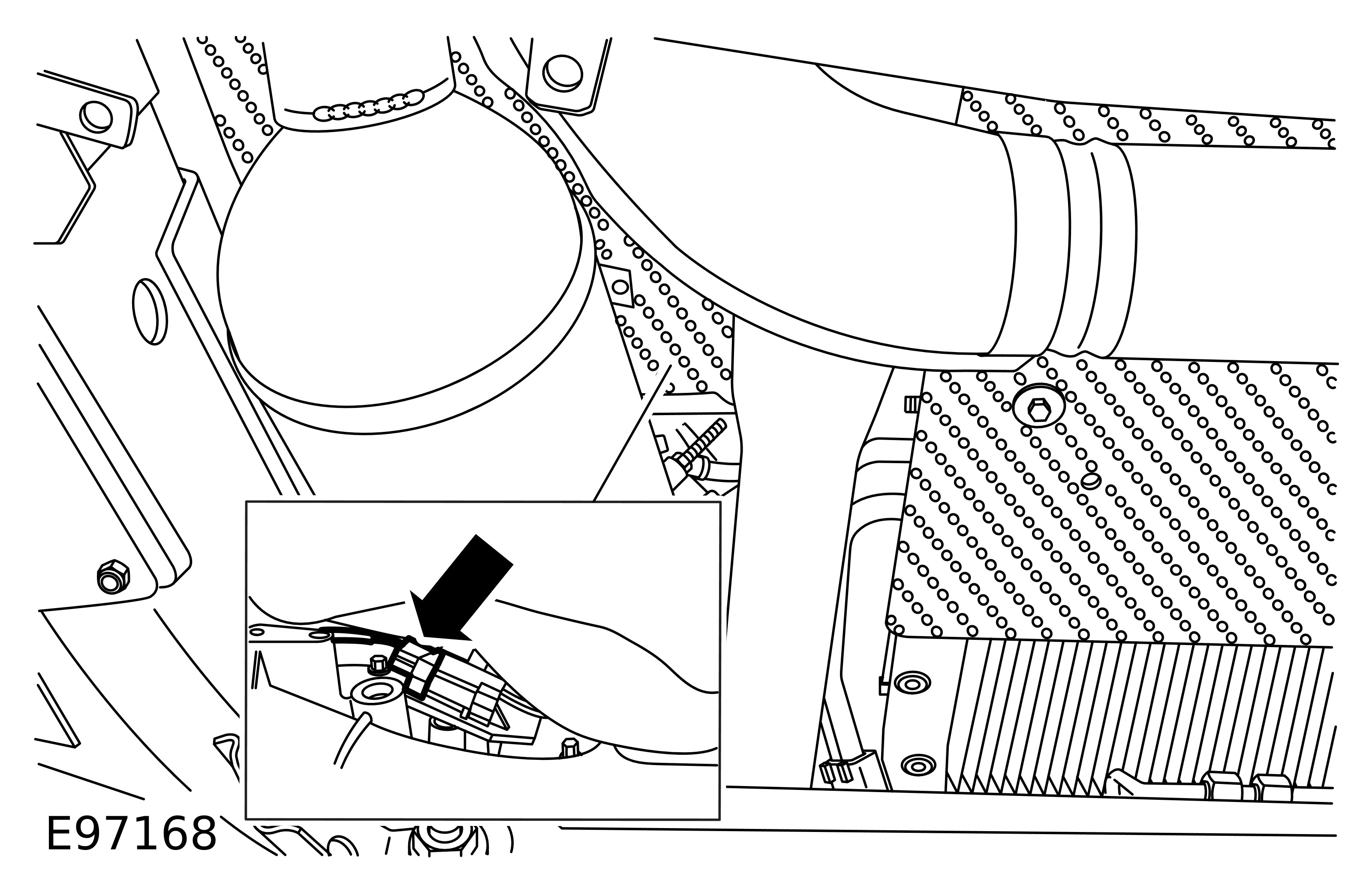

  5. E97168
    Disconnect the exhaust gas temperature sensor electrical connector.

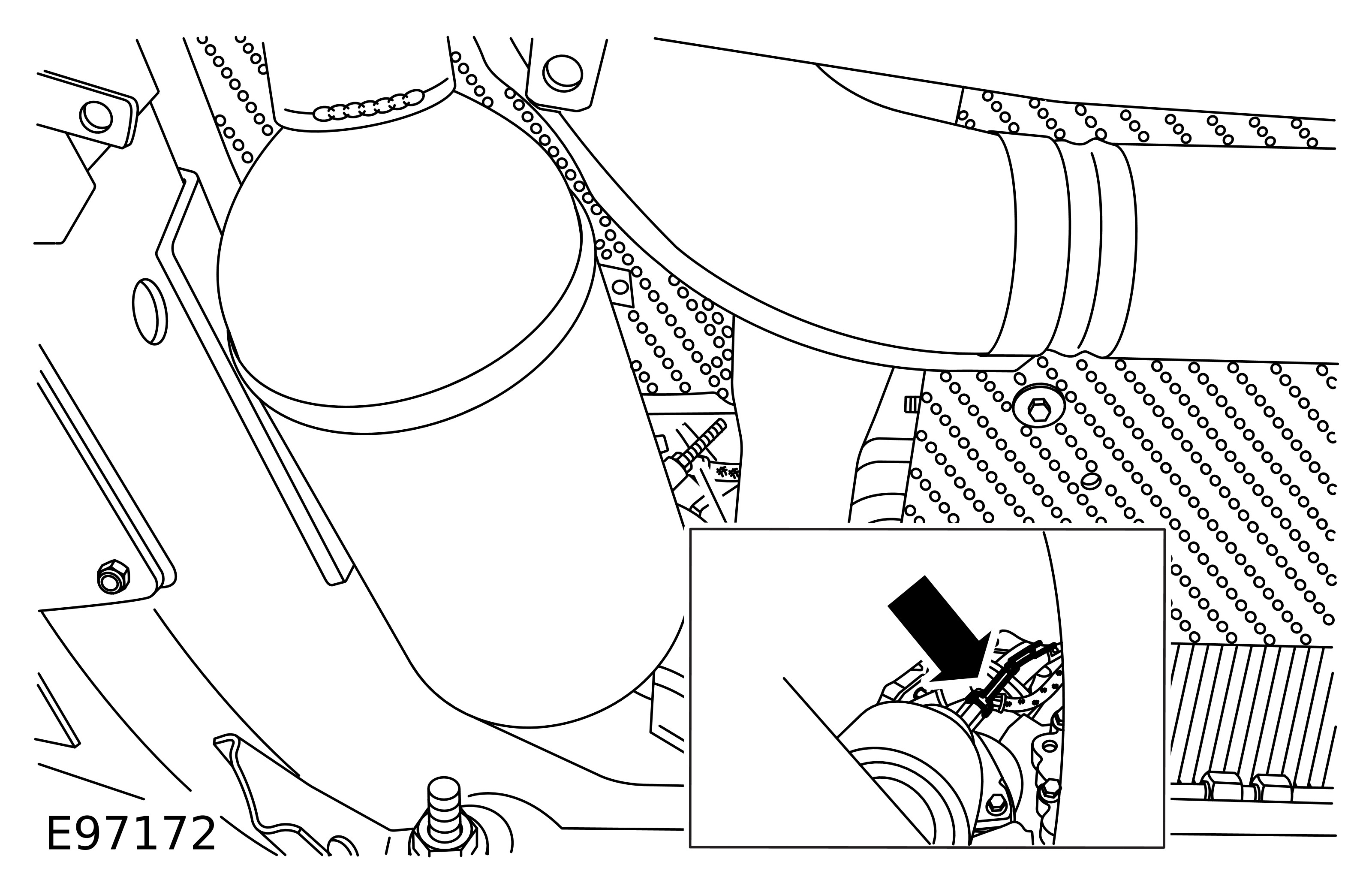

  6. E97172
    Remove the exhaust gas temperature sensor.
      • Reposition the LH catalytic converter.
Installation
  1. Install the exhaust gas temperature sensor.
      • Tighten to 35 Nm (26 lb.ft).
  2. Connect the exhaust gas temperature sensor electrical connector.
  3. Install the exhaust gas temperature sensor connector heat shield.
      • Tighten the bolt to 10 Nm (7 lb.ft).
  4. Secure the LH catalytic converter.
      • Tighten the bolts to 25 Nm (18 lb.ft).
  5. Tighten the LH catalytic converter to DPF clamp.
      • Tighten the nut to 48 Nm (35 lb.ft).
